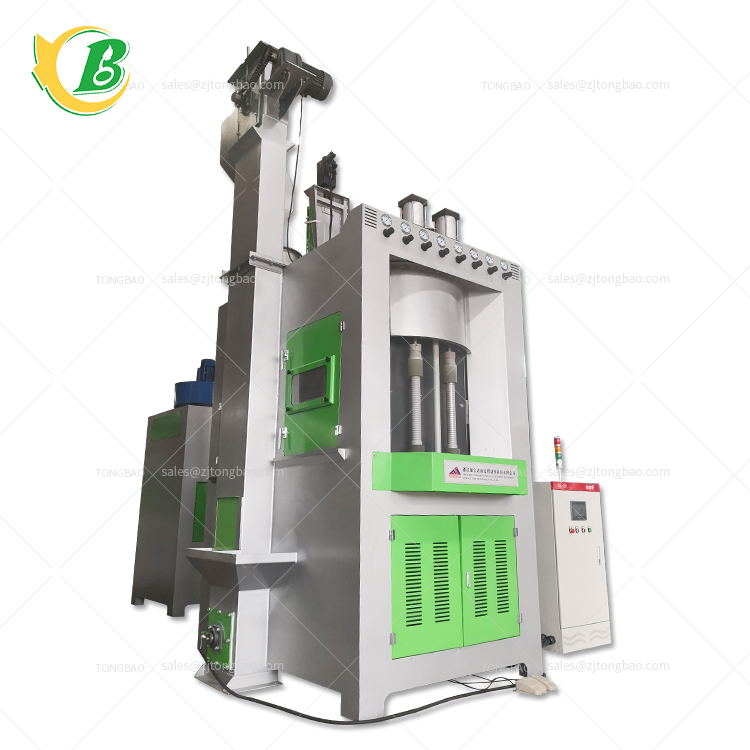

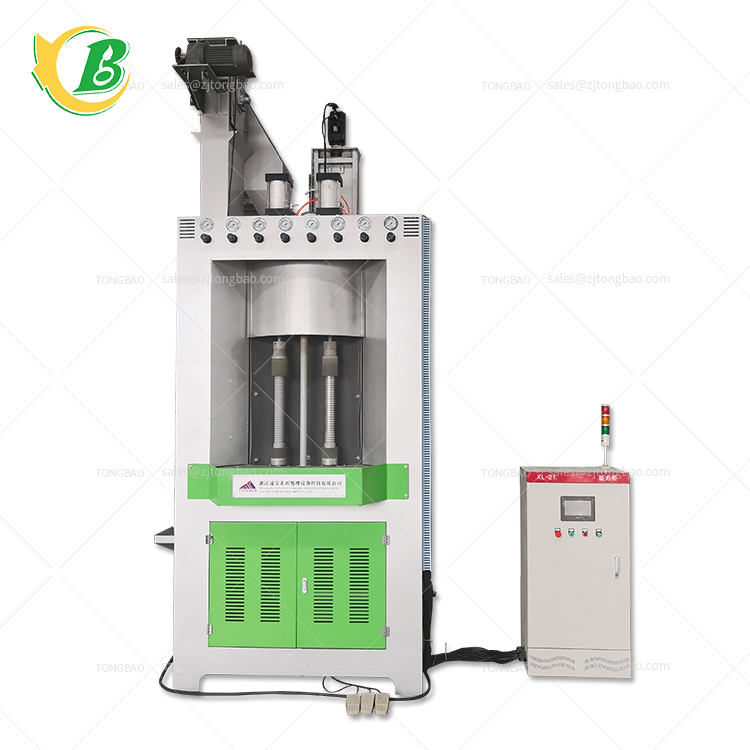

Double station CNC sandblasting machine, turntable automatic sandblasting equipment TB-SC1419-8A
Double station CNC sandblasting machine (rotary disc automatic sandblasting equipment) TB-SC1419-8A Equipment use: It is suitable for surface cleaning, dirt removal, surface finishing and improvement of surface adhesion of discs, cups and similar other cylindrical products, which is conducive to spraying operations.
Double station CNC sandblasting machine TB-SC1419-8A parameters Model: TB-SC1419-8A Machine dimensions (mm): about L1400×W1900×H3300mm Machine shell material: Q235 Workpiece rotation speed: variable frequency adjustable speed Motor power of small turntable: 0.75KW Splitter drive motor power: 370W Abrasive recovery method: screw conveyor + bucket elevator Bucket elevator motor: 2.2KW Servo lift of spray gun: adjustable speed and stroke Servo motor: 1.5KW Lighting in the machine cabin: 220v, 2×10w led light Dust removal method: filter cartridge automatic pulse blowback Dust removal power: 4.0KW Number of spray guns: 8 Nozzle diameter (mm): φ8 (optional) Power supply: total power is about 6.2kw, 380v (220), 50hz Compressed air source pressure: 5-8bar (kg/cm2) Compressed air source volume: 6-8 m3/min
