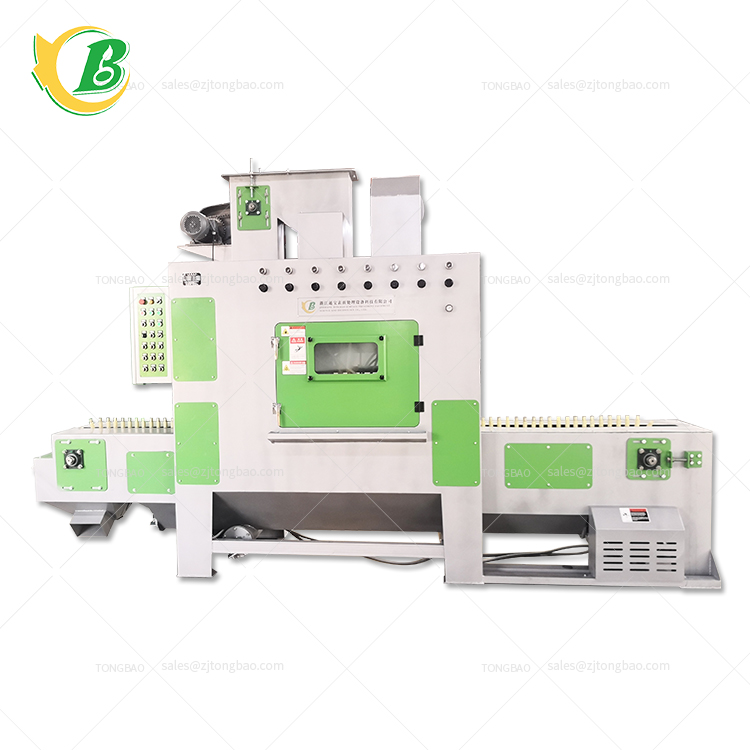

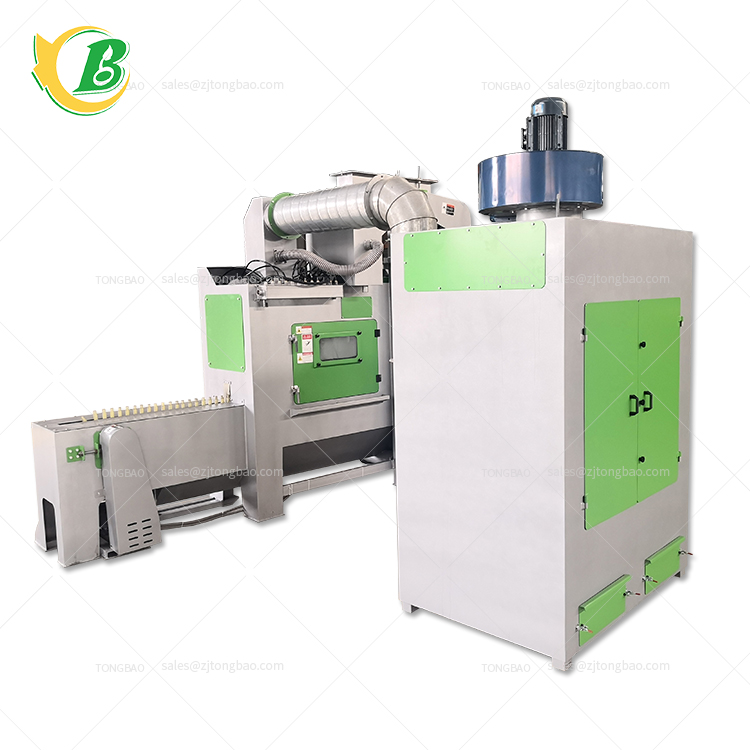

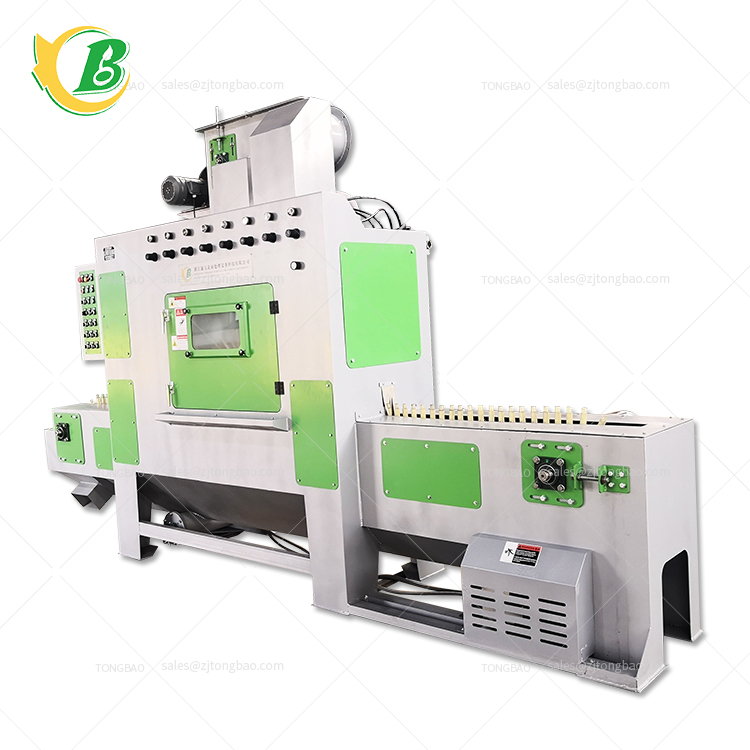

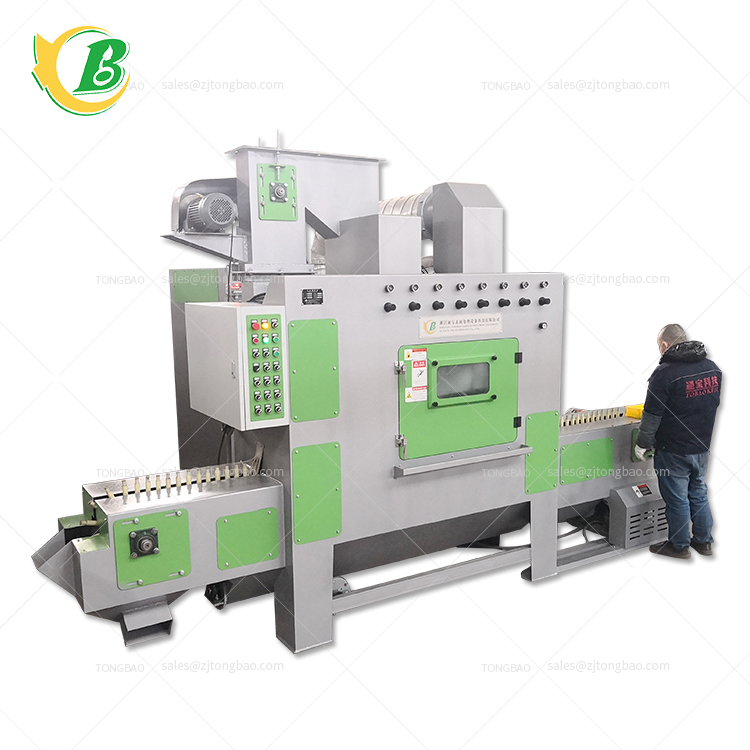

Valve dedicated automatic sandblasting machine, conveyor type sandblasting equipment TB-SC100A
Automatic sandblasting machine dedicated for valve Conveyor sandblasting equipment TB-SC100A Equipment use: Natural rubber truck inner tube nozzles, tire valve nozzles, etc., before fluidization, increase the roughness of sandblasting, etc.

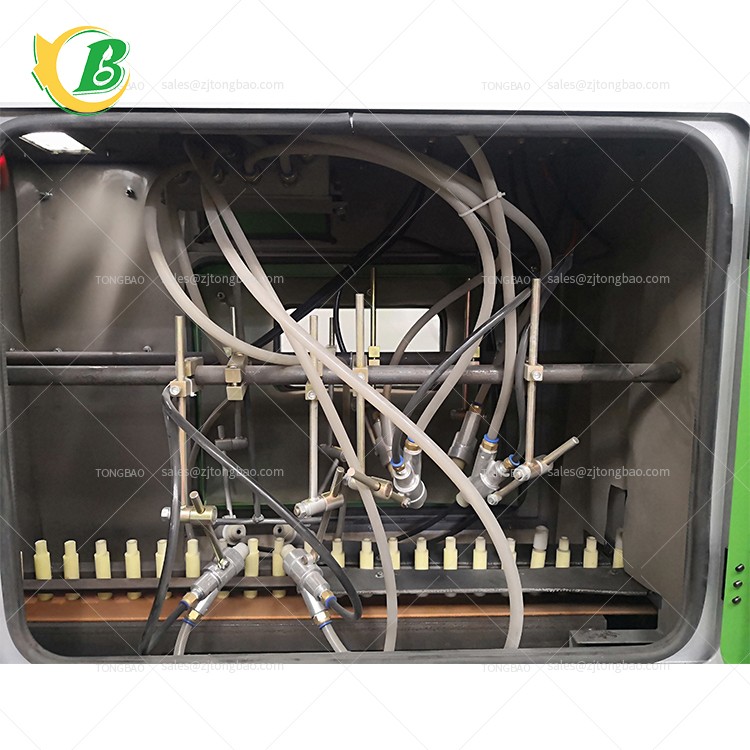

Parameters of automatic sandblasting machine for valve Model: TB-SC100A Machine dimensions (mm): about L4430×W3500×H2735MM Machine shell material: Q235 Workpiece conveying speed: 0.5~3m/min (frequency adjustable speed) Conveying motor power: 750W, 1 set Abrasive recovery method: screw conveyor + bucket elevator Screw conveyor motor: 0.4KW, 1 set Bucket elevator motor: 1.5KW, 1 set Lighting in the machine cabin: 220v, 1×10w led light Equipment compartment door: front and rear manual doors Dust removal method: filter cartridge automatic pulse blowback Dust removal power: 4.0KW Number of spray guns: 8 Nozzle diameter (mm): φ8 (optional) Power supply: total power about 6.7kw, 380v (220), 50hz Compressed air source pressure: 5-8bar (kg/cm2) Compressed air source volume: 5-8 m3/min
