Manual high-pressure automatic car electric turntable sandblasting machine

No price
  • Product Description
  • Product Parameter

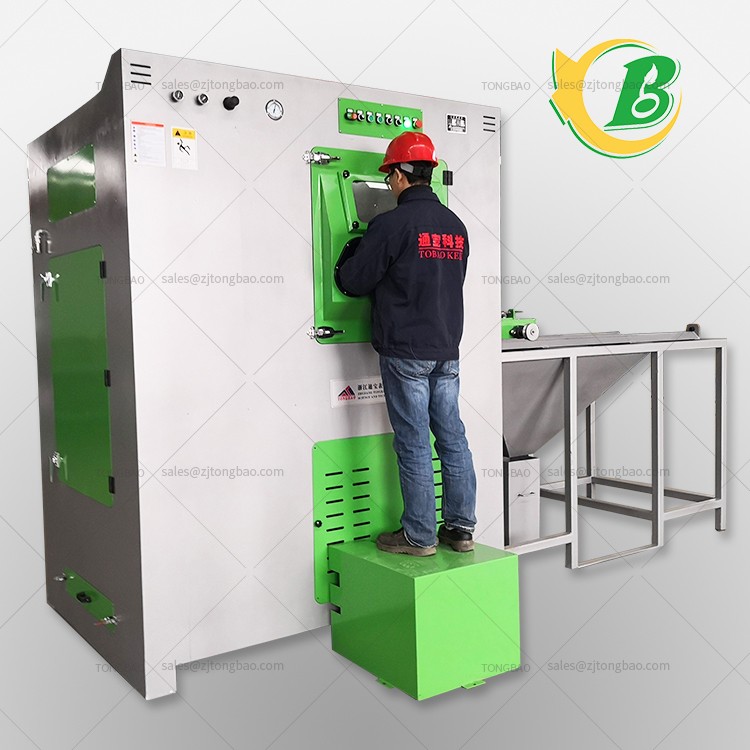

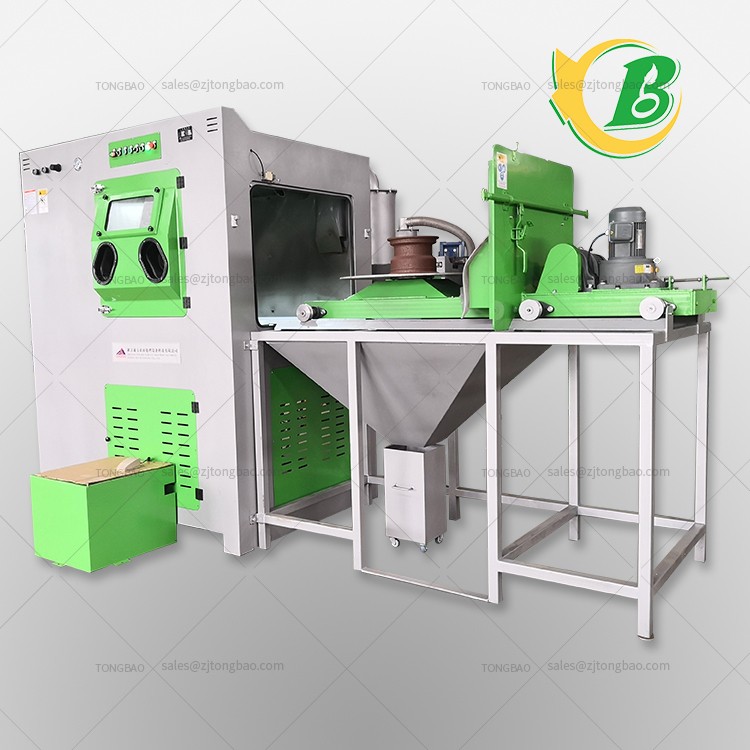

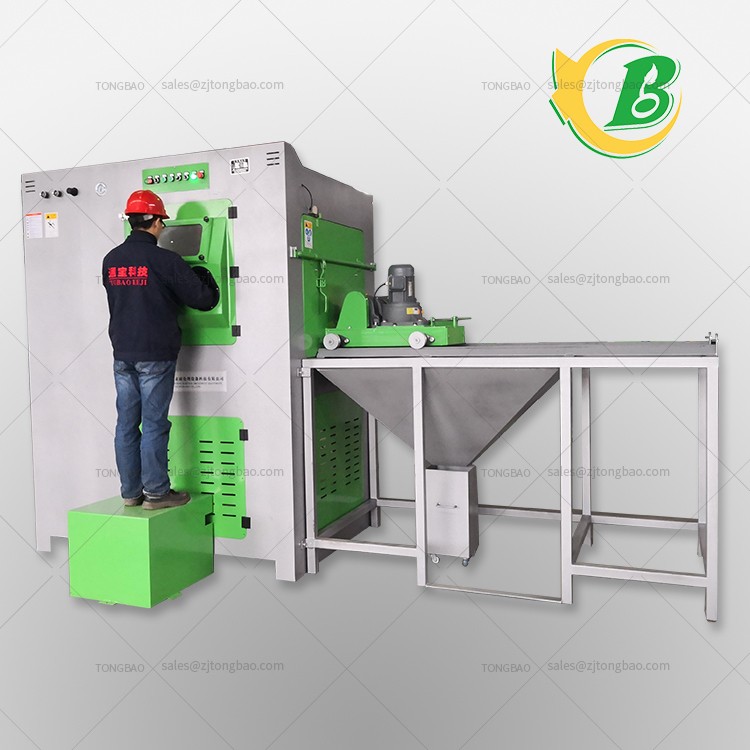

Manual high-pressure automatic car electric turntable sandblasting machine

The manual high-pressure automatic car electric turntable sandblasting machine is mainly composed of the host, the turntable system, the spray gun, the pressure tank, the spray gun system, the separator circulation system, the dust box system, the electrical system, the air compressor (provided by the user), and the control box.

Manual high pressure automatic car electric turntable sandblasting machine parameters

model

TB-NT900

TB-NT1000

TB-NT1200

TB-NT1500

TB-NT1800

TB-NT2000

Sandblasting studio size

900*900

*850MM

1000*1000

*900MM

1200*1200

*900MM

1500*1500

*1000MM

1800*1800

*1000MM

2000*2000

*1000MM

Turntable diameter

500mm

750mm

850mm

1100mm

1400mm

1500mm

(Can be customized on demand)

Turntable load-bearing

About 50KG

About 150KG

About 200KG

(Can be customized on demand)

In and out of the trolley

Optional manual or electric access to the studio

Number of spray guns

2 automatic + 1 manual

4 automatic + 1 manual

6 automatic + 1 manual

8 automatic + 1 manual

10 automatic + 1 manual

12 automatic + 1 manual

(Can be customized on demand)

Nozzle diameter

8 or 10mm


Dust removal method

Filter cartridge or cloth bag (choose one of the two)

Sand back method

Pneumatic vacuum or bucket elevator (choose one of the two)

Electrical control

Contactor switch button control, man-machine interface PLC electrical control or numerical control system control (choose one of three)

Equipment power

3~380V,50hz

Remarks: 1. Models can be customized according to user needs; 2. Robot integrated equipment such as ABB, Panasonic, and Yaskawa can be selected to realize intelligent automation according to users.
