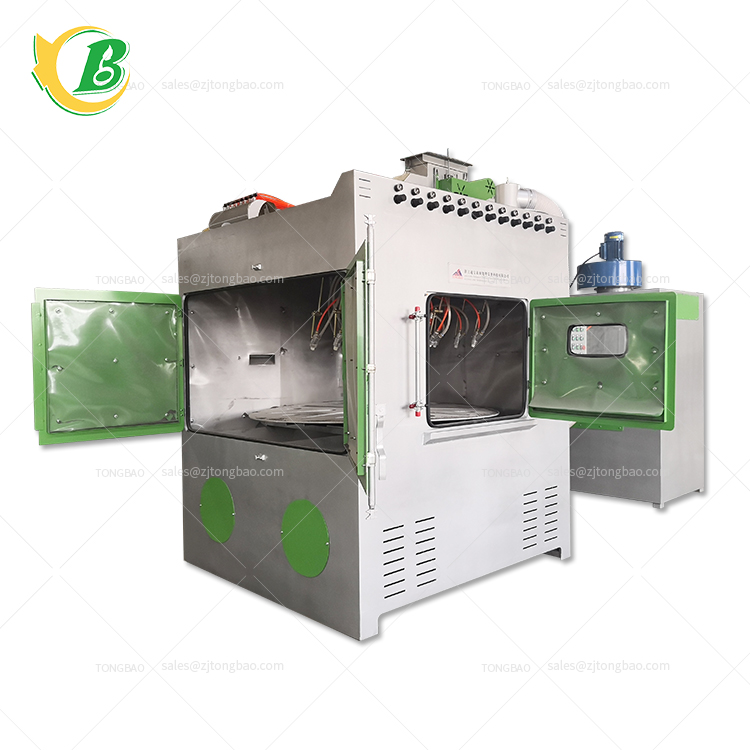

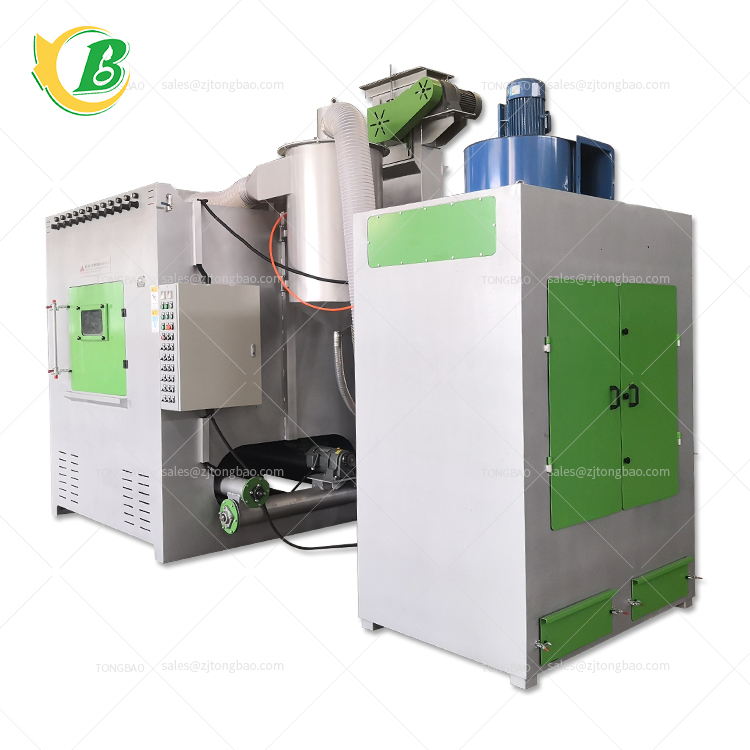

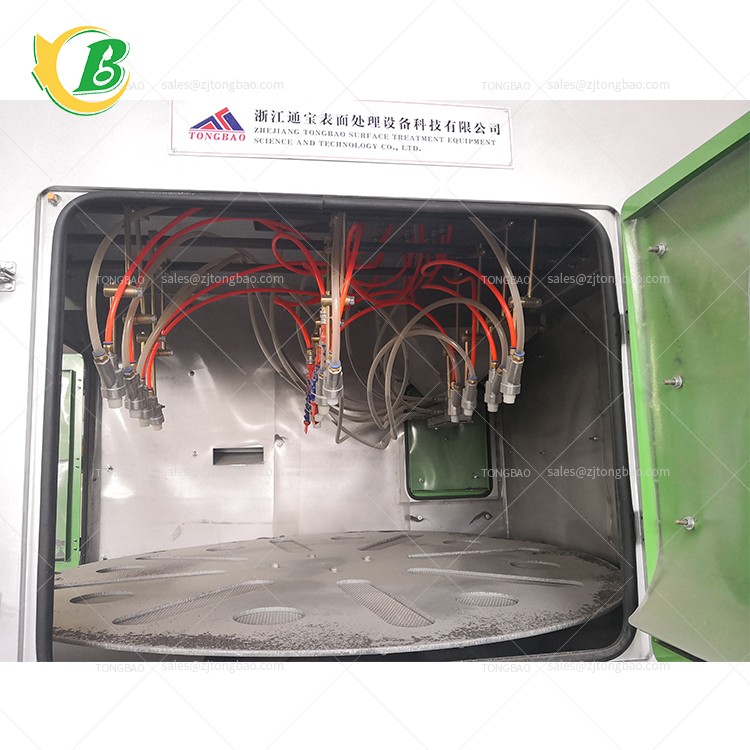

Electric turntable automatic sandblasting machine, turntable sandblasting equipment TB-SAF2000-FTA

Electric turntable automatic sandblasting machine

Model: TB-SAF2000-FTA

Machine dimensions (mm): about L2600×W3240×H3300MM

Machine shell material: Q235

Workpiece rotation speed: variable frequency adjustable speed

Diameter of turntable: 1800mm

Load-bearing: ≤200KG

Turntable motor power: 550W, 1 set

Abrasive recovery method: screw conveyor + bucket elevator

Bucket elevator motor: 2.2KW, 1 set

Spray gun swing motor: 0.40KW

Lighting in the machine cabin: 220v, 2×10w led light

Equipment compartment door: front and rear manual doors

Dust removal method: filter cartridge automatic pulse blowback

Dust removal power: 3.0KW

Number of spray guns: 12

Nozzle diameter (mm): φ8 (optional)

Power supply: total power is about 6.2kw, 380v (220), 50hz

Compressed air source pressure: 5-8bar (kg/cm2)

Compressed air source volume: 10-12 m3/min
