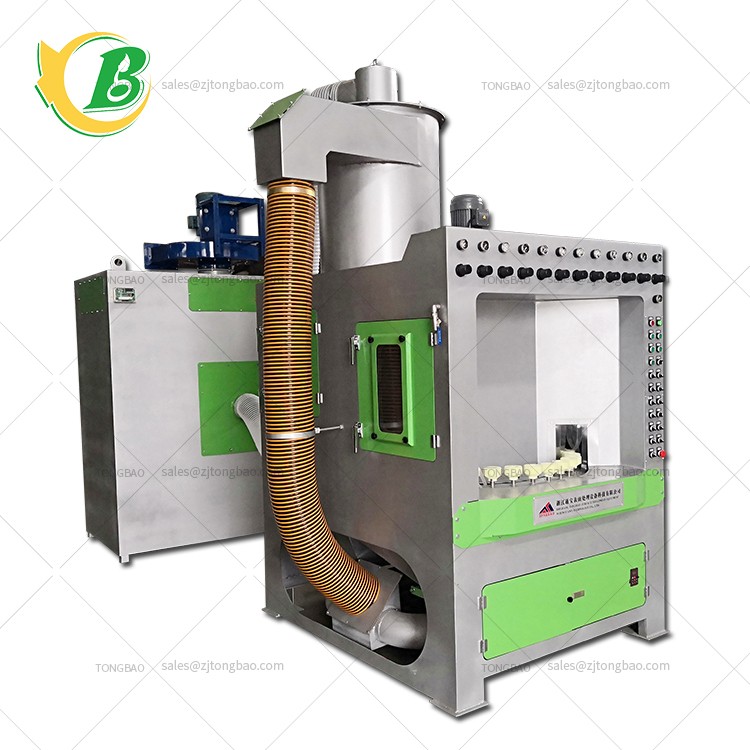

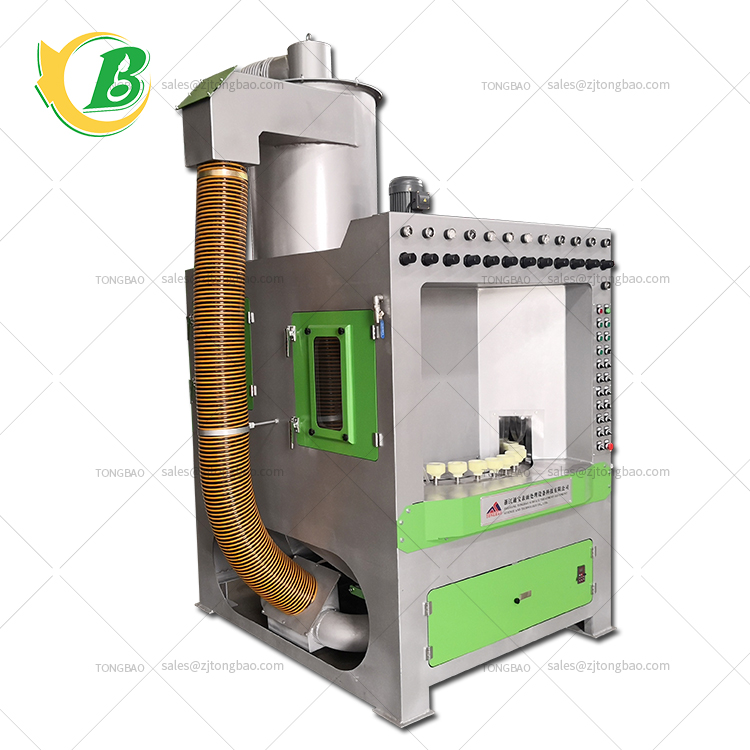

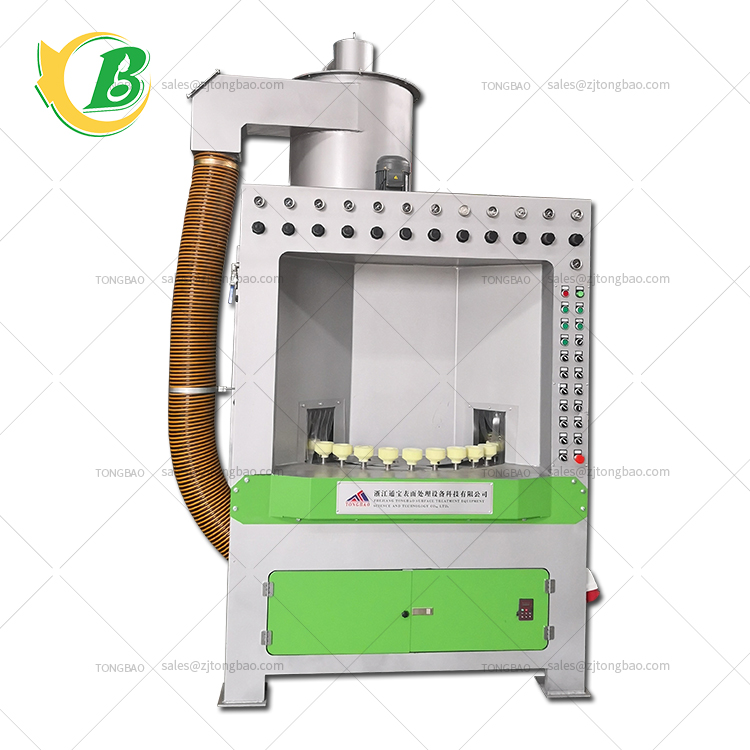

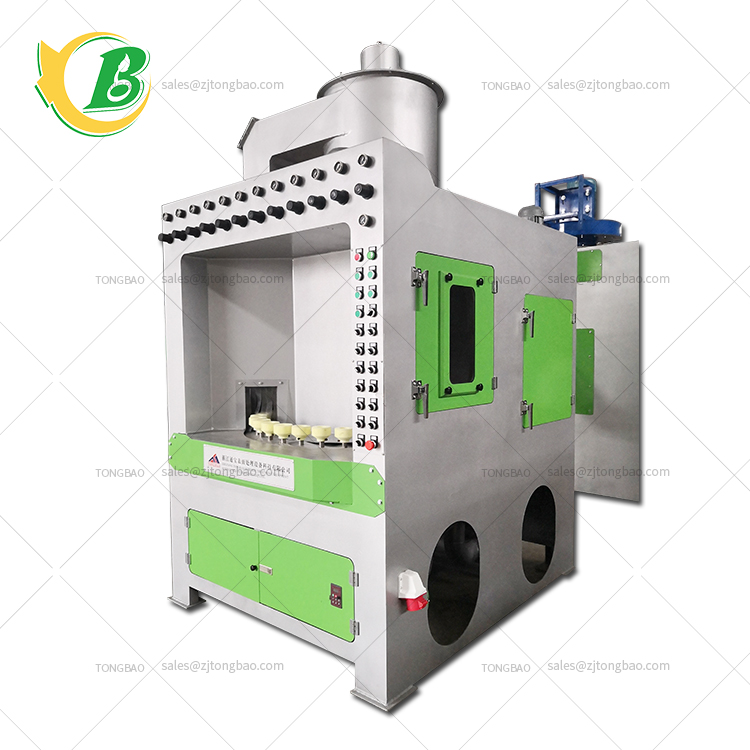

Multi-gun continuous turntable multi-station turntable automatic sandblasting machine

Host material

The main machine structure is welded with 2mm-10mm steel plates.

Overall dimensions

1400mm long 1900mm wide 3200mm high (including the height of the separator)

Sandblasting room size

1395mm length*1695mm width*1800mm height

Dust box

1000mm length * 1200mm width * 2600mm height (including the height of the fan)

Dust removal fan power

5.5KW/380V/50HZ

Automatic conveying mechanism for

large turntable

0.75KW/380V/50HZ [Speed inverter adjustment]

The automatic conveying mechanism of the big turntable is composed of

motor, drive roller, bearing, connecting support shaft, 28 small

turntables, 8m6400 double-sided synchronous belt, 8m synchronous gear

plate, etc.

Automatic conveying mechanism for

small turntable

0.4KW/380V/50HZ [Speed inverter adjustment]

Automatic gun holder

0.2KW/380V/50HZ [Speed inverter adjustment]

Gun placement

6 in the upper center and 6 in the rear center, the sandblasting gun swings

continuously, and the speed can be adjusted

Number of guns

12 nozzles (aluminum alloy with carbide nozzle): 8*20*60 using boron carbide

material

Perspective window

2 mirror frames,Lower sand bucket: 2

illumination

LED lights (power: 20W 220V 50HZ two)

Total power of equipment

About 7.5 KW/380V/50HZ
