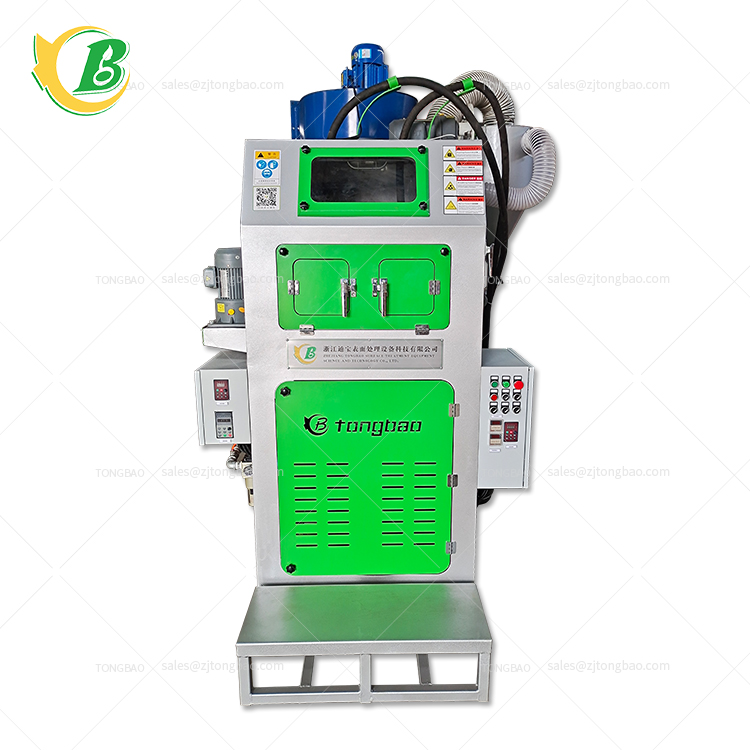

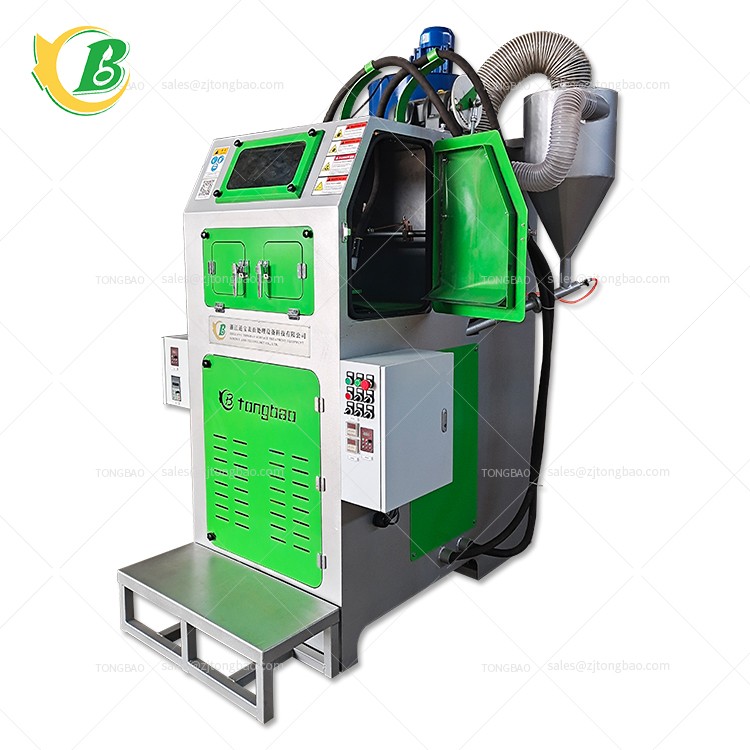

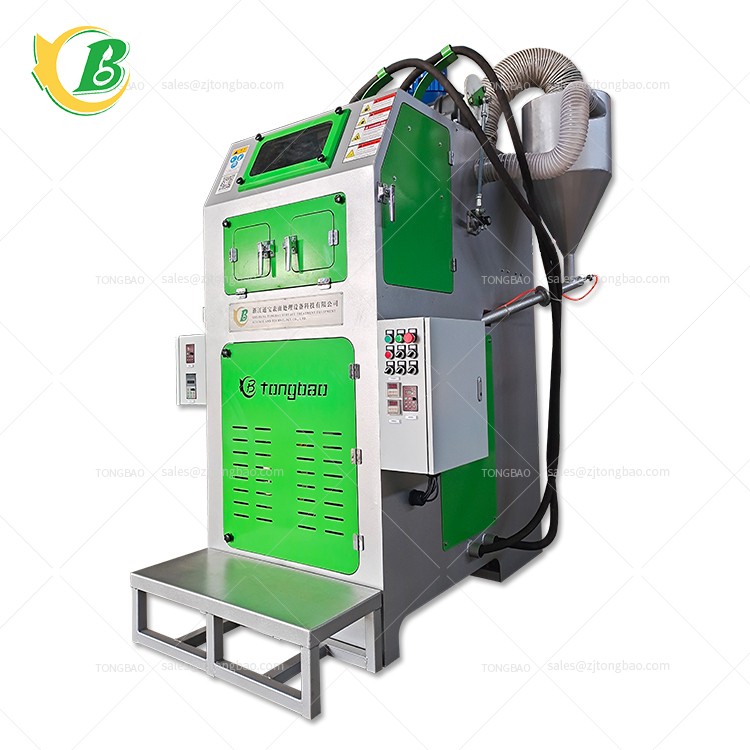

Double electric turntable pressure automatic sandblasting machine

Parameters of double electric turntable pressure automatic sandblasting machine

Model: TB-PN900-2

Machine dimensions (mm): about 1650×2360×H2520MM

Machine shell material: Q235

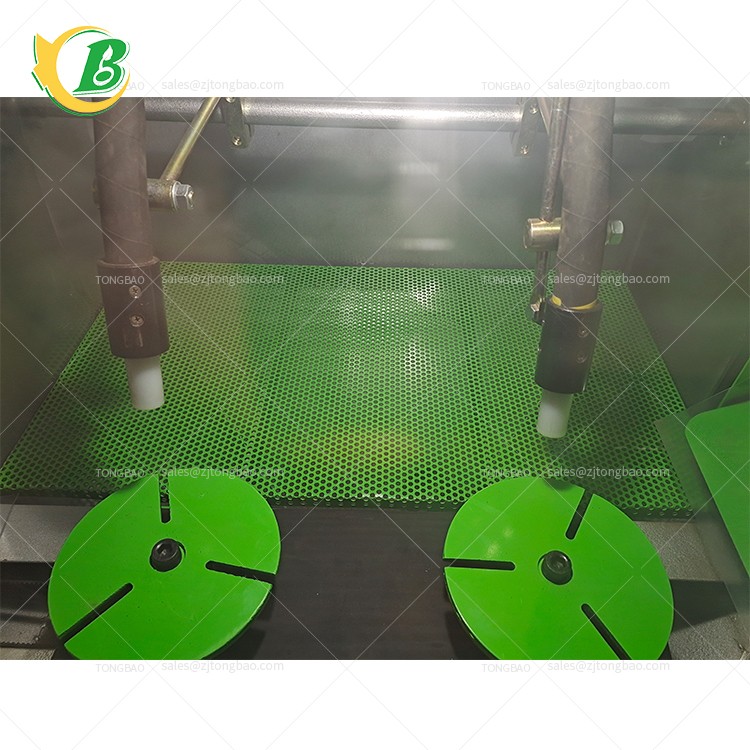

Diameter of turntable in cabin: 220MM

Number of inner cabin carousels: 2

Working mode of inner cabin turntable: electric (with frequency conversion speed regulation)

Turntable drive motor: 0.4KW, 1 set

Spray gun swing motor: 0.4KW, 1 set

Lighting in the machine cabin: 24v, 2×10w led light

Equipment compartment door: manual on the right and front

Dust removal power: 2.2KW

Number of spray guns: 2

Nozzle diameter (mm): φ4 (optional)

Power supply: the total power is about 3kw, 380v (220), 50hz

Compressed air source pressure: 5-8bar (kg/cm2)

Compressed air source volume: 2—5 m3/min
