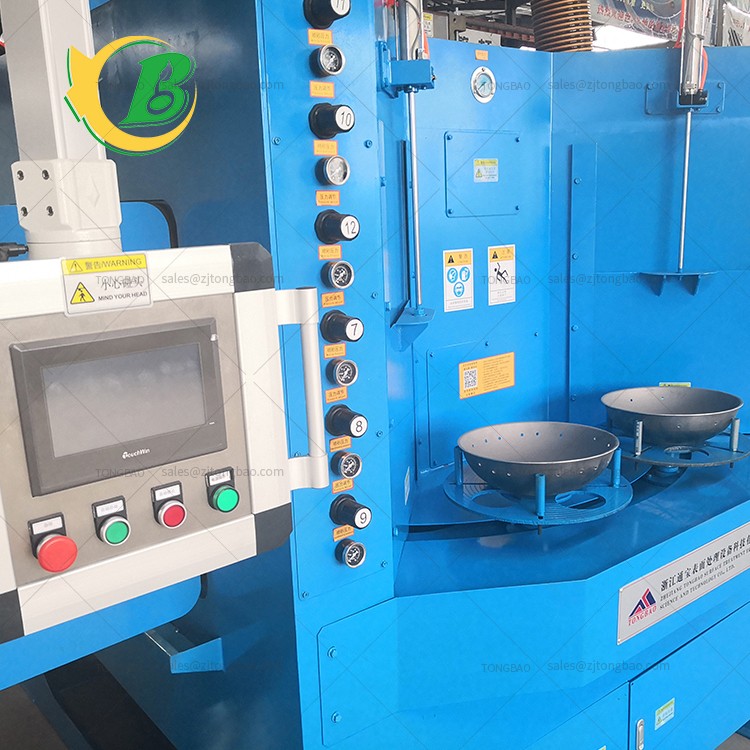

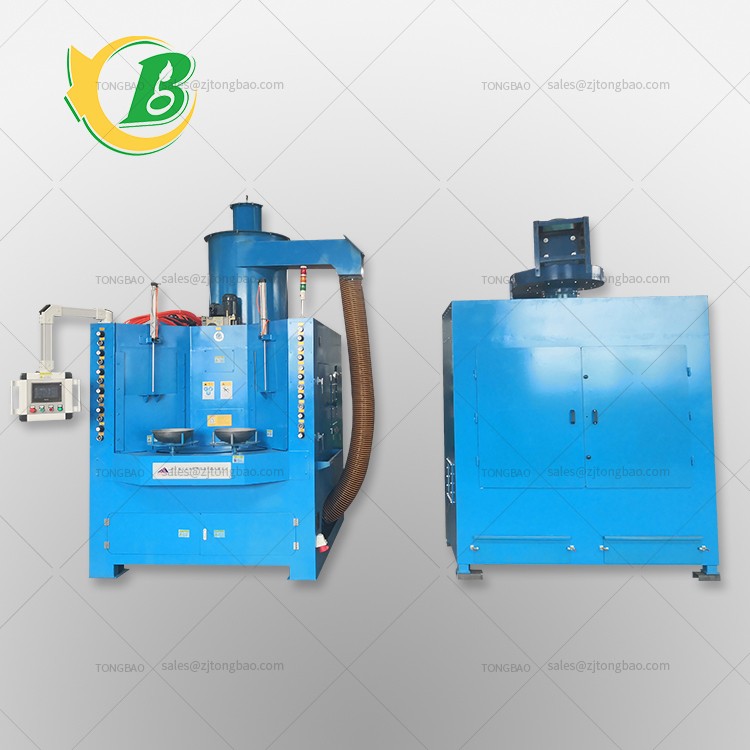

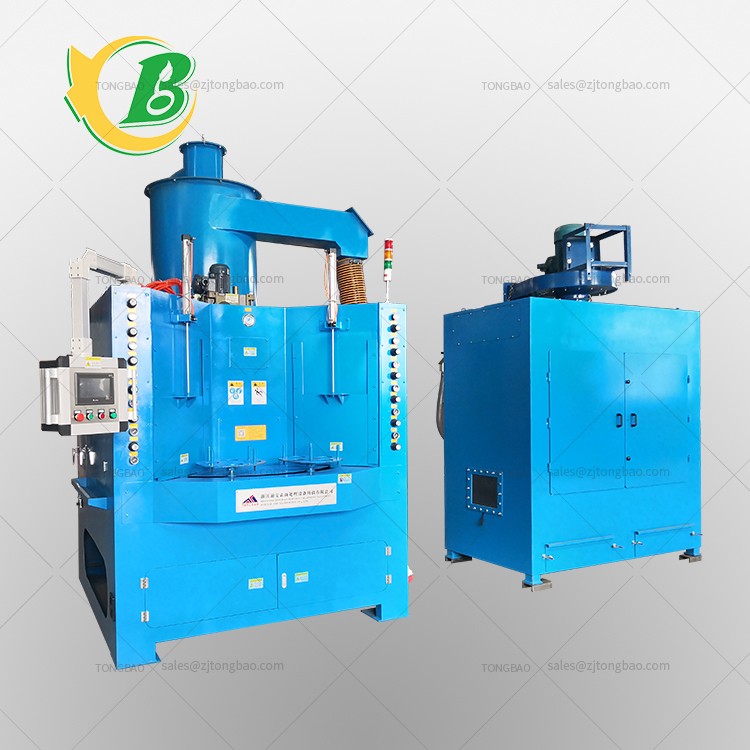

Double station turntable automatic sandblasting machine TB-NT1820-12A

Parameters of Tb-NT1820 Double Station Turntable Automatic Sandblasting Machine

Mainframe dimensions (mm): 2450(L)*2220 (W)*3350 (H)

Diameter of large turntable (mm): φ1500

Processing workpiece size (mm): φ300 (D) * 660 (H)

Number of processing stations: 4

Number of small turntables: 16

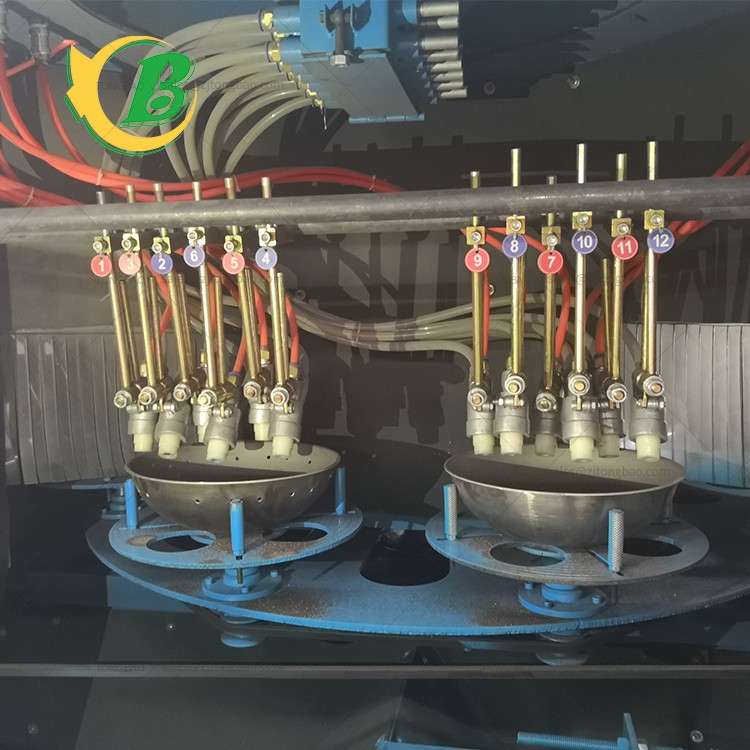

Number of spray guns (hands): 10 or 12

Spray gun working method: electric swing

Spray gun caliber: 8

Power supply: 380V, 50HZ

Total power (kW): about 8.5

Compressed air source pressure bar (kg/cm2): 5-8

Compressed air source air volume (m3/min): 8-12

Compressed air input caliber (inch): 1

Separator fan (KW): 7.5

Separator size (mm): φ800*1520 (H)

Air volume of separator (m3/min): 60

Host mass (kg): about 1500

Dust collector mass (kg): about 350

Dust removal power (hp): 10

Dust collector size (mm): 1500(L)*1500(W)*2200(H)

Sandblasting chamber lighting: 220V, 12W, LED light

Front workbench lighting: 220V, 12W, LED light

Front workbench door opening method: pneumatic

The machine can be customized: the number of spray guns is 8-16, the number of processing stations is 2-4, the diameter of the spray gun is 6/8/10, the filter cartridge and cloth bag of the dust collector are optional, the sand return method is optional by wind or mechanical, and electrical control is optional PLC touch screen.
