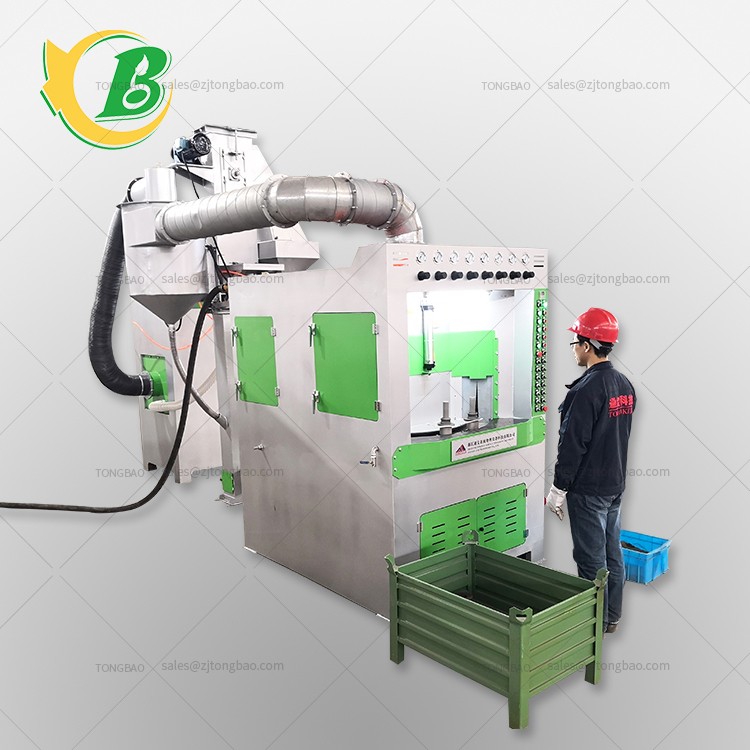

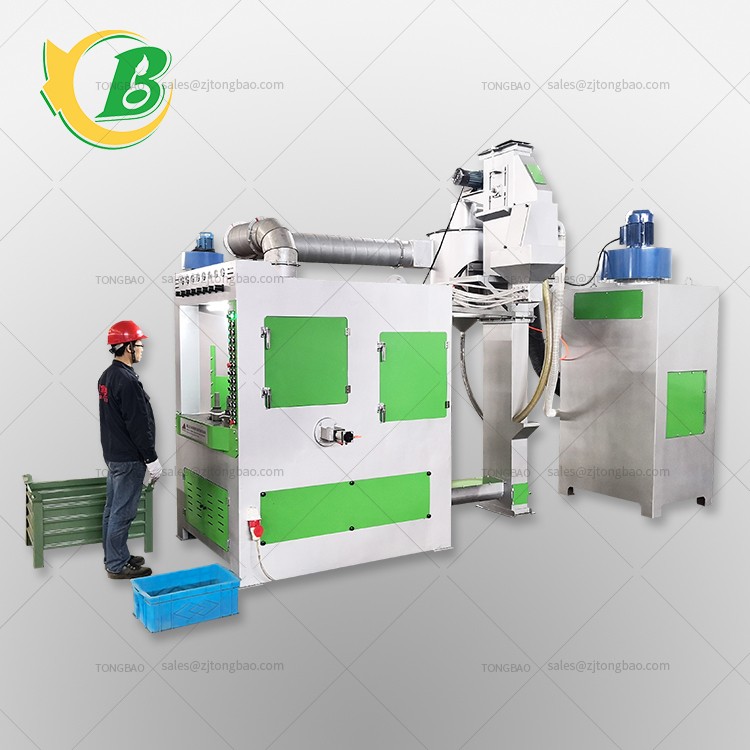

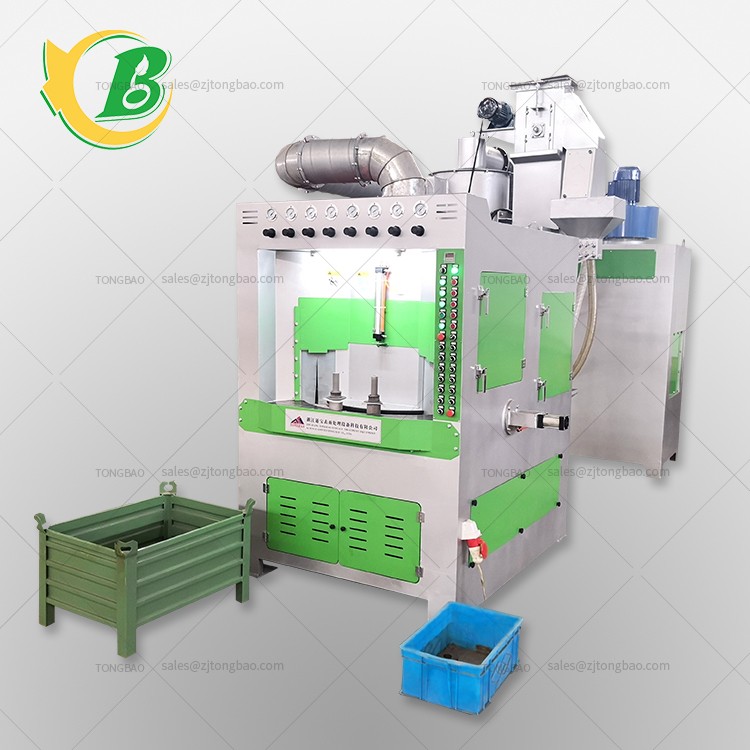

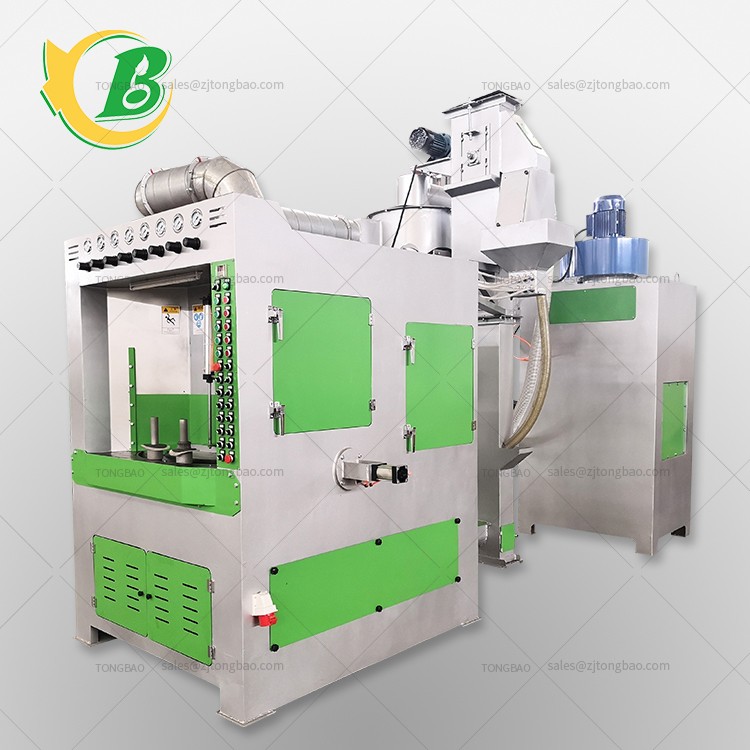

Double station turntable automatic sandblasting machine TB-NT1419-8A

Double station rotary table automatic sandblasting machine TB-NT1419-8A parameters

Mainframe dimensions (mm): 2020(L)*2050 (W)*3000 (H)

Diameter of large turntable (mm): φ1150

Processing size (mm): φ250 (D) * 220 (H)

Number of processing stations: 2

Number of small turntables: 8

Number of spray guns (hands): 8

Spray gun working method: electric swing

Spray gun caliber: 8

Power supply: 380V, 50HZ

Total power (kW): about 6.5

Compressed air source pressure bar (kg/cm2): 5-8

Compressed air source air volume (m3/min): 6.4—9.6

Compressed air input caliber (inch): 1

Separator fan (KW): 5.5

Separator size (mm): φ500*858 (H)

Air volume of separator (m3/min): 45

Host mass (kg): about 1100

Dust collector mass (kg): about 350

Dust removal power (hp): 7

Dust collector size (mm): 1500(L)*1500(W)*2200(H)

Sandblasting chamber lighting: 220V, 12W, LED light

Front workbench lighting: 220V, 12W, LED light

Front workbench door opening method: pneumatic

The machine can be customized: the number of spray guns is 6-12, the number of processing stations is 2-4, the diameter of the spray gun is 6/8/10, the dust collector filter cartridge and the cloth bag are optional, the sand return method is optional by wind or mechanical, and the electrical control is optional PLC touch screen.
