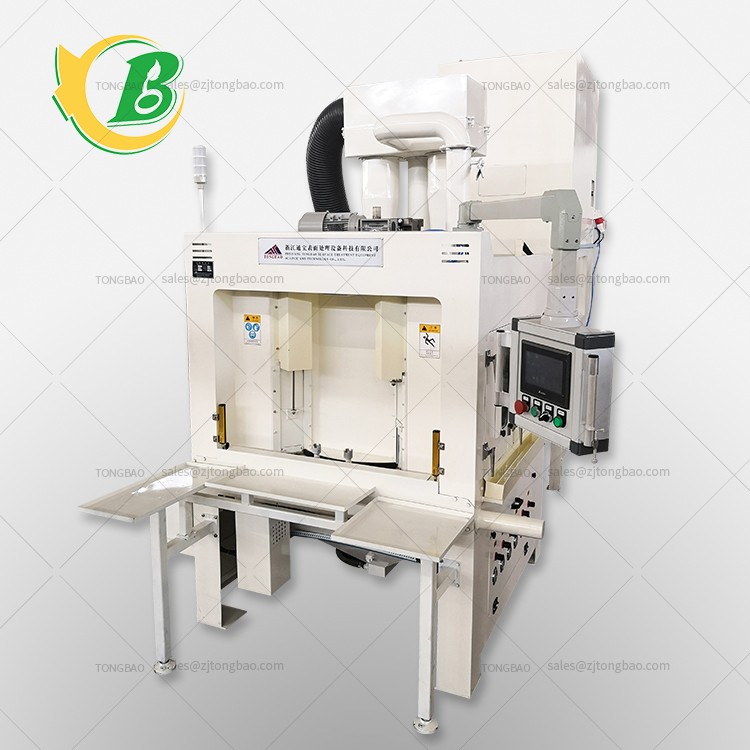

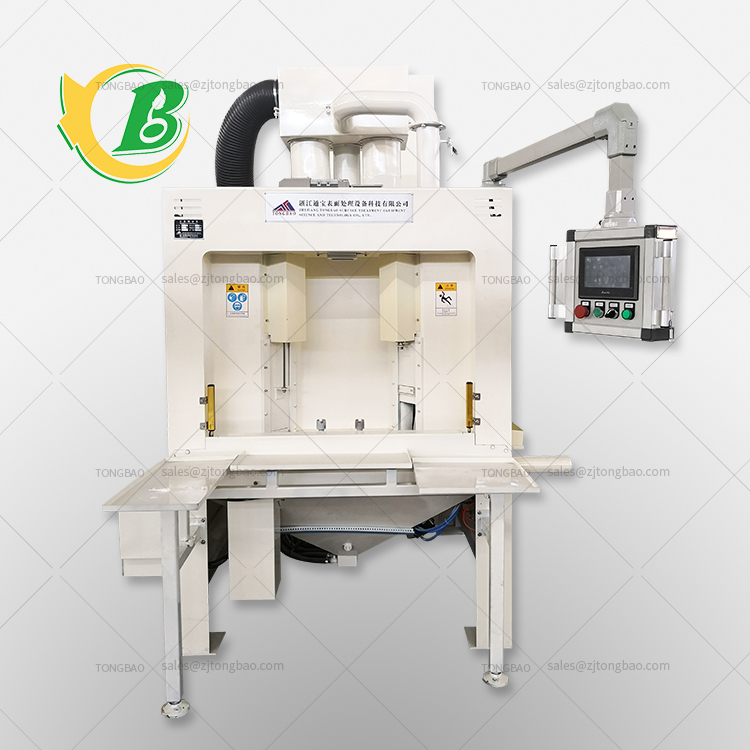

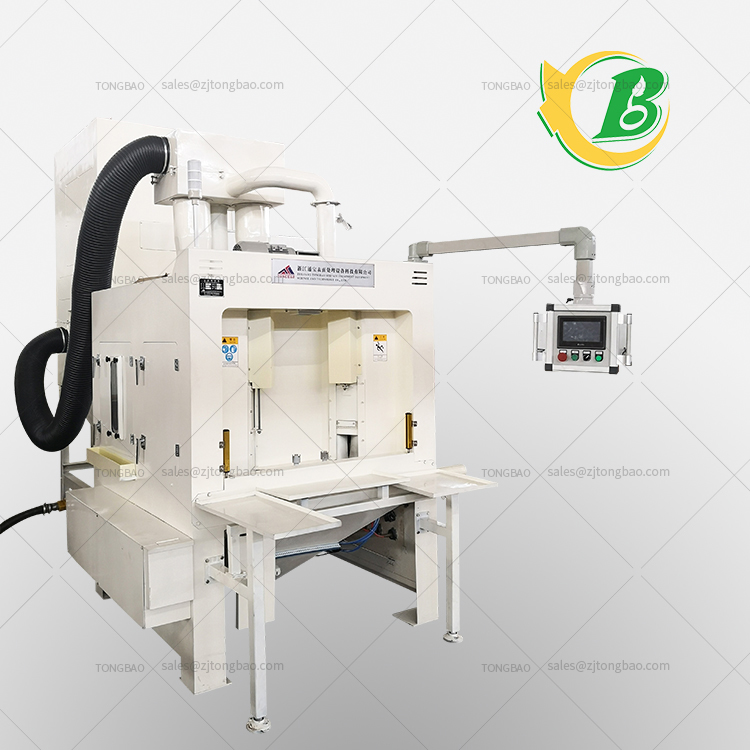

Auto parts sandblasting, turntable automatic sandblasting machine TB-NT1419-8A

Turntable automatic sandblasting machine TB-NT1419-8A parameters

Mainframe dimensions (mm): 2020(L)*2050 (W)*3000 (H)

Diameter of large turntable (mm): φ1150

Processing size (mm): φ250 (D) * 220 (H)

Number of processing stations: 2

Number of small turntables: 8

Number of spray guns (hands): 8

Spray gun working method: electric swing

Spray gun caliber: 8

Power supply: 380V, 50HZ

Total power (kW): about 6.5

Compressed air source pressure bar (kg/cm2): 5-8

Compressed air source air volume (m3/min): 6.4—9.6

Compressed air input caliber (inch): 1

Separator fan (KW): 5.5

Separator size (mm): φ500*858 (H)

Air volume of separator (m3/min): 45

Host mass (kg): about 1100

Dust collector mass (kg): about 350

Dust removal power (hp): 7

Dust collector size (mm): 1500(L)*1500(W)*2200(H)

Sandblasting chamber lighting: 220V, 12W, LED light

Front workbench lighting: 220V, 12W, LED light

Front workbench door opening method: pneumatic

The machine can be customized items: the number of spray guns is 6-12, the number of processing stations is 2-4, the diameter of the spray gun is 6/8/10, the filter cartridge and the cloth bag of the dust collector are optional, the sand return method can be selected by wind or mechanical, and the electrical control is optional PLC touch screen.
