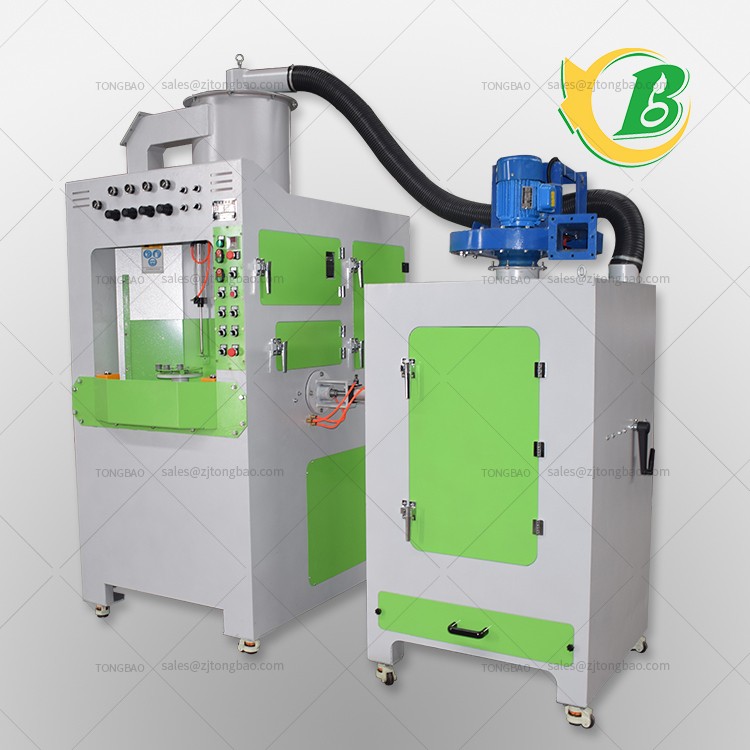

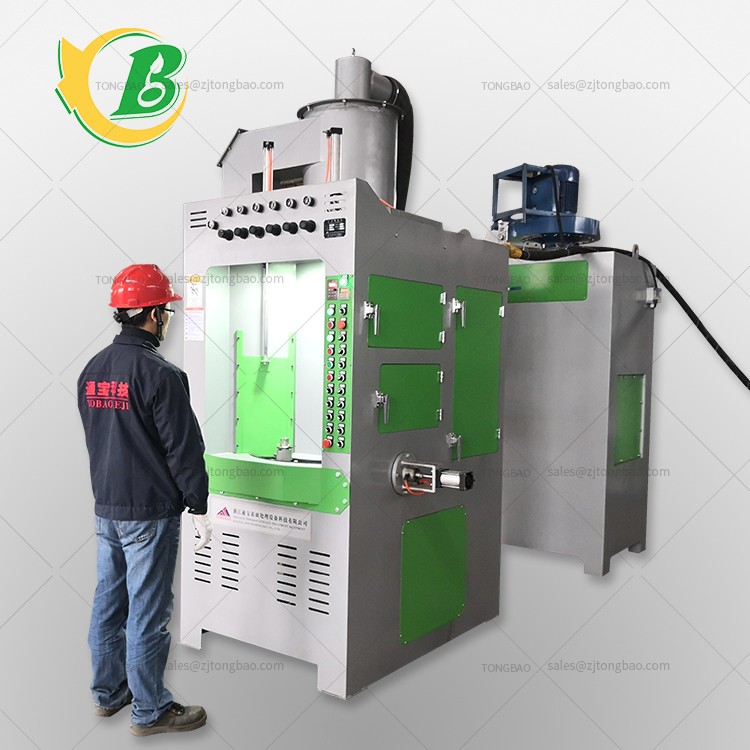

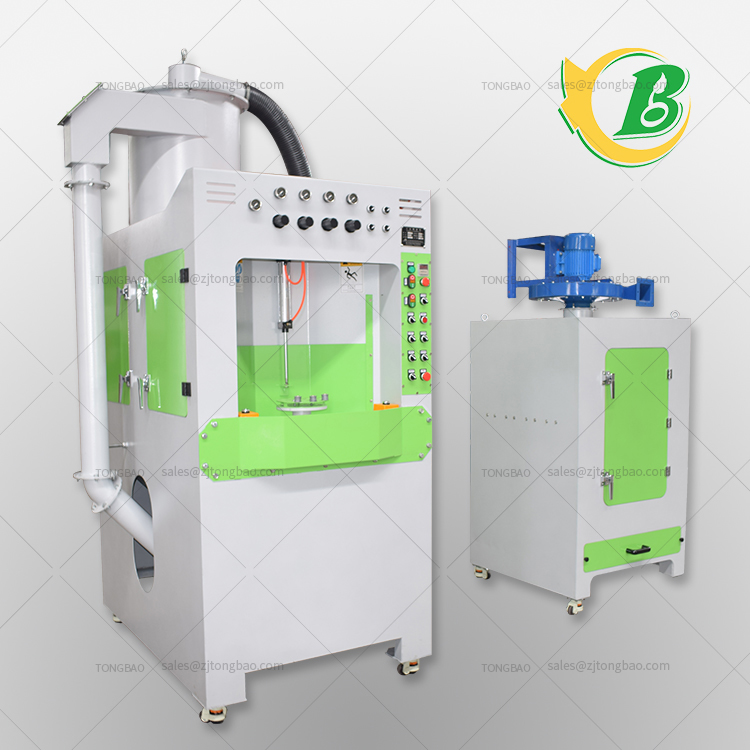

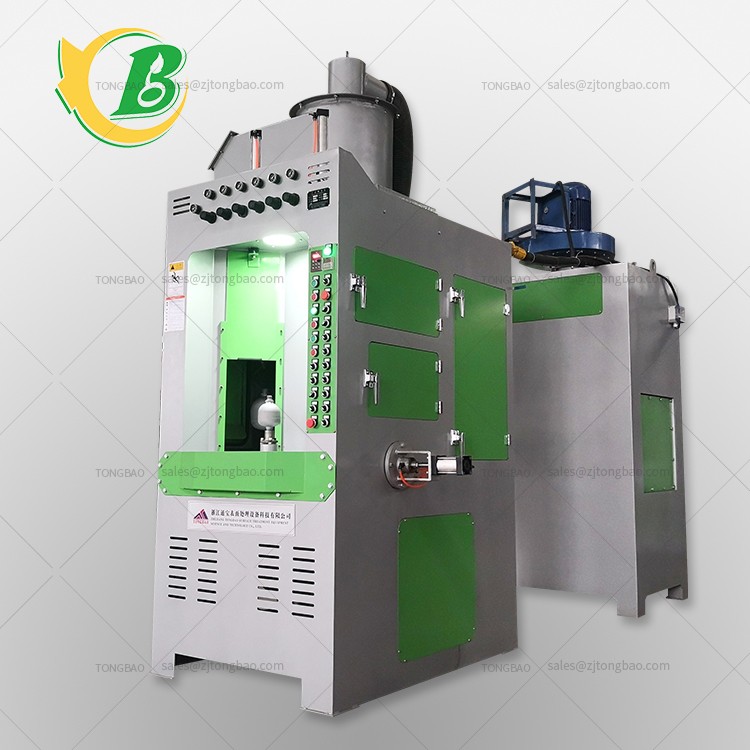

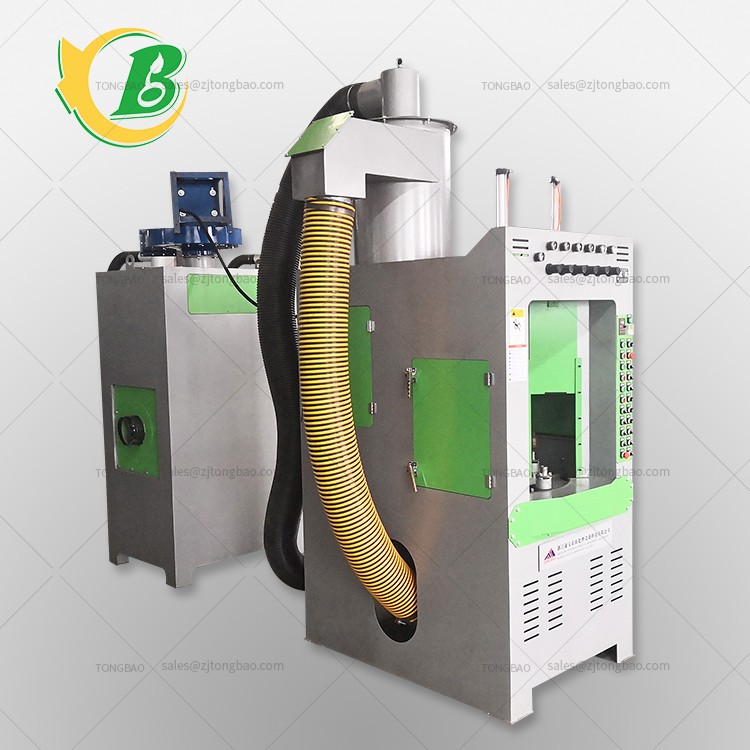

Automatic door turntable type automatic sandblasting machine TB-NT1014
Automatic door turntable type automatic sandblasting machine TB-NT1014 Application scope: This series of models is suitable for the mass production of small and medium-sized discs and cups: rice cookers, heating plates, golf heads, cups, bottles, gears, camera cases and other workpieces and products. 4 spray guns
6 spray guns

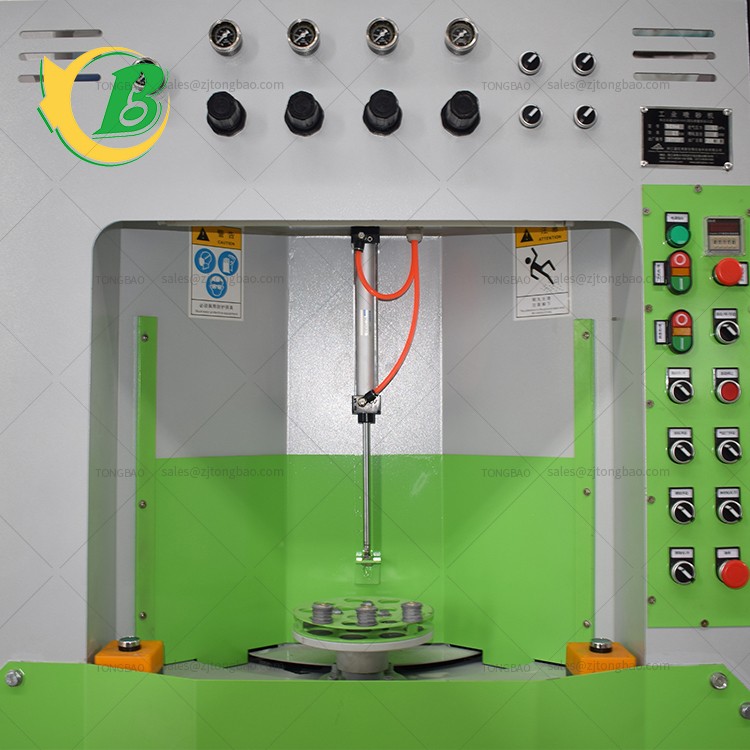

Turntable automatic sandblasting machine TB-NT1014 Mainframe dimensions (mm): 1620(L)*1550(W)*2630(H) Diameter of large turntable (mm): φ750 Processing size (mm): φ150 (D) * 130 (H) Number of processing stations: 2 Number of small turntables: 8 Number of spray guns (hands): 4 or 6 Spray gun working method: electric swing Spray gun caliber: 8 Power supply: 380V, 50HZ Total power (kW): about 3 Compressed air source pressure bar (kg/cm2): 5-8 Compressed air source air volume (m3/min): 3.2-6 Compressed air input caliber (inch): 1 Separator fan (KW): 2.2 Separator size (mm): φ500*858 (H) Air volume of separator (m3/min): 26 Host mass (kg): 800 The mass of dust collector (kg): 275 Dust removal power (hp): 3 Dust collector size (mm): 900(L)*950(W)*1850(H) Sandblasting chamber lighting: 220V, 12W, LED light Front workbench lighting: 220V, 12W, LED light Front workbench door opening method: pneumatic The machine can be customized: the number of spray guns is 2-6, the number of processing stations is 1-3, the diameter of the spray gun is 6/8/10, the dust collector filter cartridge and the cloth bag are optional, the sand return method is optional by wind or mechanical, and the electrical control is optional PLC touch screen.
