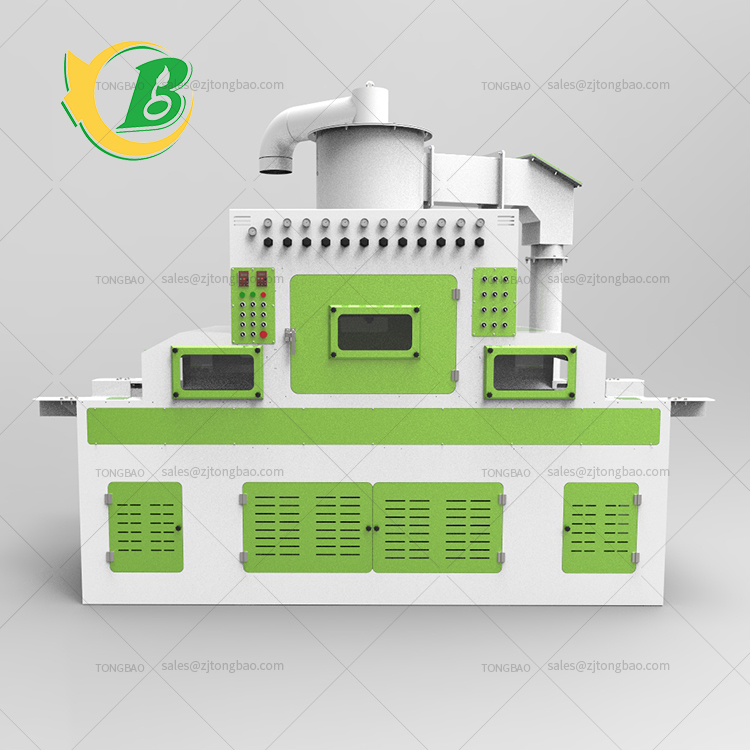

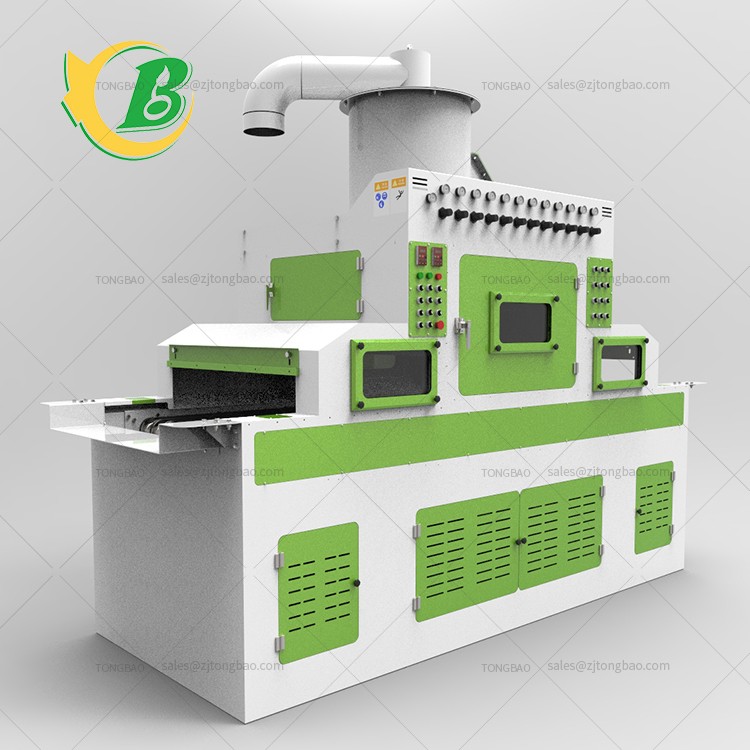

Conveyor type sandblasting equipment, through type automatic sandblasting machine Tb-NC1400-16A

Conveyor automatic sandblasting machine Tb-NC1400-16A parameters

Mainframe dimensions (mm): 3700(L)*2000(W)*3500(H)

Sandblasting inlet size (mm): 1000(L)*280(H)

Host quality (KG): 1700

Power supply: 380V, 50HZ

Total power (kW): about 6.6

Compressed air source pressure bar (kg/cm2): 5-8

Compressed air source air volume (m3/min): 12.8—19.2

Compressed air input caliber (inch): 1

Number of spray guns (hands): 16

Spray gun caliber (mm): 8

Spray gun working method: electric swing

Separator fan (KW): 7.5

Separator size (mm): φ750*1500 (H)

Air volume of separator (m3/min): 60

Host lighting: 220V, 12W*2, LED light

Blowing agency: Yes

Dust collector mass (kg): 350

Dust collector size (mm): 1500(L)*1500(W)*2200(H)

The machine can be customized: the number of spray guns is 14-18, the spray gun caliber is 6/8/10, the filter cartridge of the dust collector and the cloth bag are optional, the sand return method can be selected by wind or mechanical, and the electrical control can be selected with PLC touch screen.
