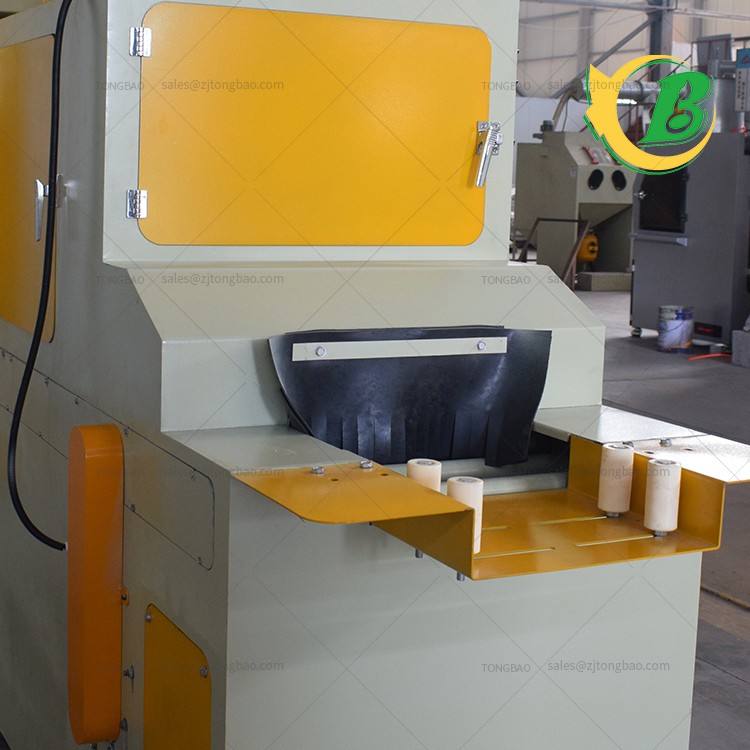

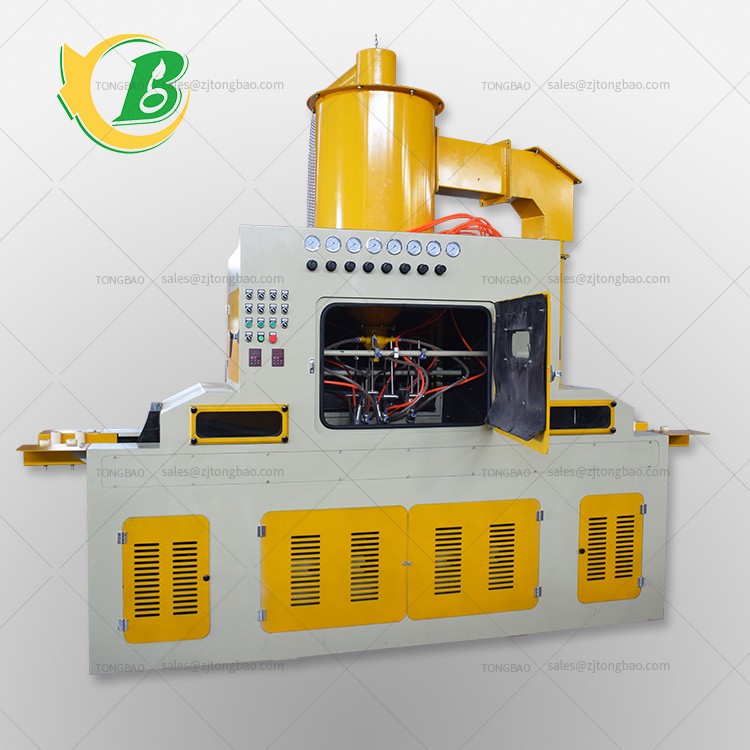

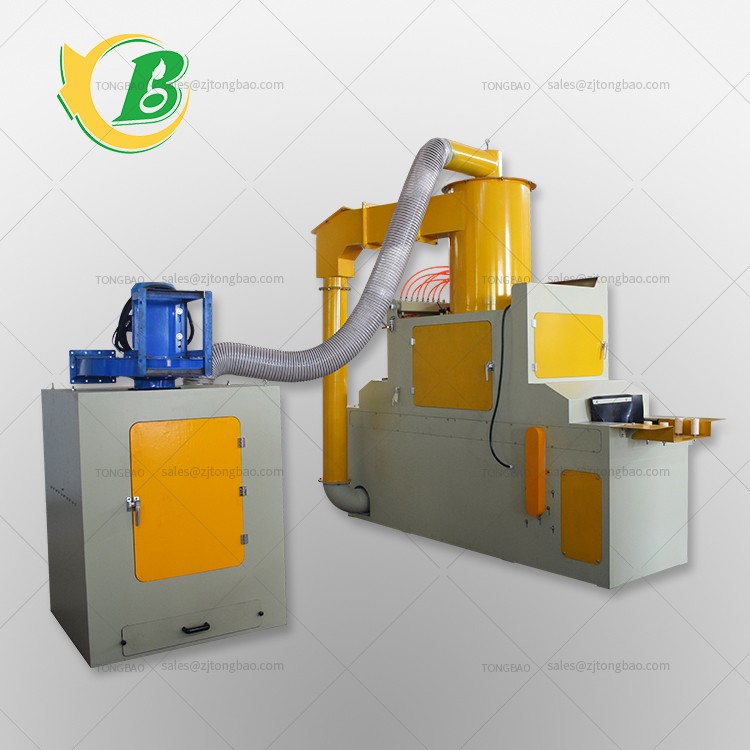

Conveyor type automatic sandblasting machine TB-NC400-8A

Conveyor type automatic sandblasting machine TB-NC400-8A parameters

Mainframe dimensions (mm): 3560(L)*1280(W)*3150(H)

Sandblasting inlet size (mm): 400(L)*150(H)

Host quality (KG): 1050

Power supply: 380V, 50HZ

Total power (kW): about 6.6

Compressed air source pressure bar (kg/cm2): 5-8

Compressed air source air volume (m3/min): 6.4-12

Compressed air input caliber (inch): 1

Number of spray guns (hands): 8

Spray gun caliber (mm): 8

Spray gun working method: electric swing

Separator fan (KW): 5.5

Separator size (mm): φ500*1450 (H)

Air volume of separator (m3/min): 45

Host lighting: 220V, 12W*2, LED light

Blowing agency: Yes

Dust collector mass (kg): 275

Dust collector size (mm): 1100(L)*1050(W)*1900(H)

The machine can be customized items: the number of spray guns is 4-10, the spray gun caliber is 6/8/10, the dust collector filter cartridge and the cloth bag are optional, the sand return method can be selected by wind or mechanical, and the electrical control can be selected with PLC touch screen.
