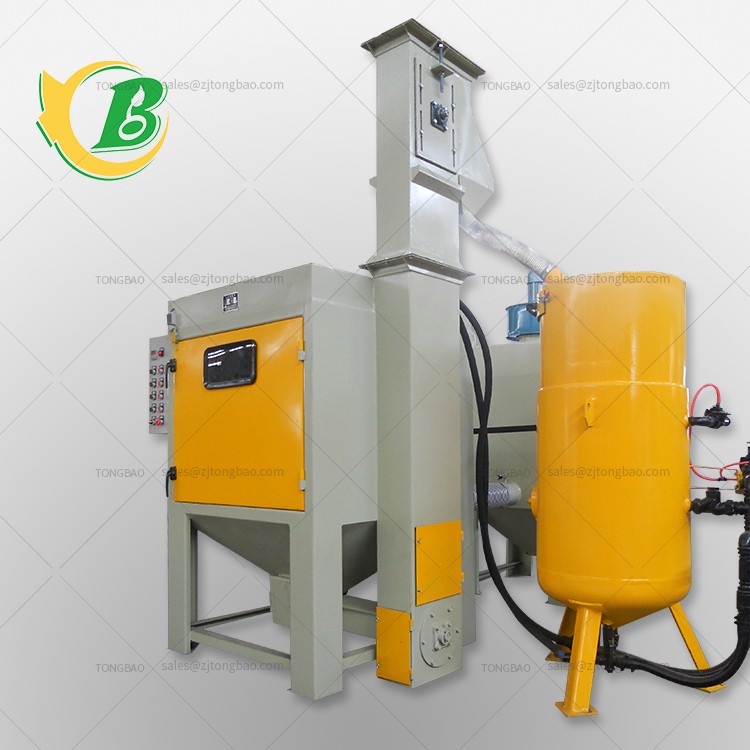

Small batch drum type automatic sandblasting machine TB-NR1111-2P
滚筒式自动喷砂机TB-NR1111-2P Suitable for automatic sandblasting of small batches of small and medium-sized workpieces (such as screwdriver bits, screwdrivers, drill bits, screws, taps, sleeves, screws, buttons, acrylic, bakelite products, electronic parts, mechanical parts, etc.).
TB-NR1111-2P Product dimensions (mm): 3600(L)*1400(W)*2850(H) Roller size (mm): φ700*500 Number of rollers (only): 1 Roller carrying capacity (kg): ≤15 Gross weight (kg): 1100 Power supply: 380V, 50HZ Total power (KW): about 4.07 Number of spray guns (hands): 2 Lighting lamp: 220V, 12W, LED light Drum motor power (KW): 0.37 Separator fan power (KW): 1.5 Dust removal power (hp): 3 Compressed air source pressure bar (kg/cm2): 5-8 Compressed air source air volume (m3/min): 1.6—3.0 Door opening method: positive opening Spray gun lifting method: manual Tank diameter (mm): 618 Tank volume (L): 350 The mass of dust collector (kg): 200 Dust collector size (mm): 850(L)*830(W)*2300(H) Tongbao drum sandblasting machine has the following standard sizes:
