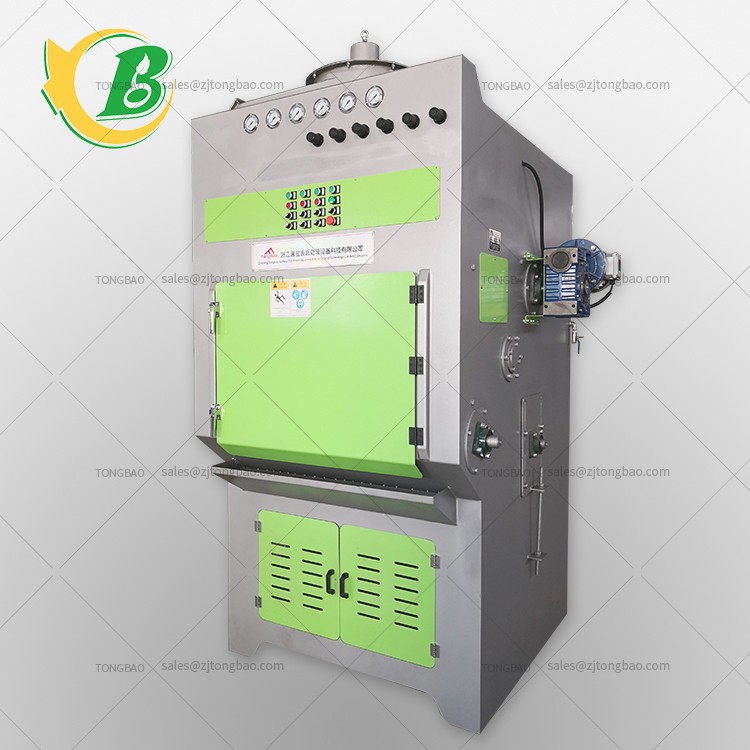

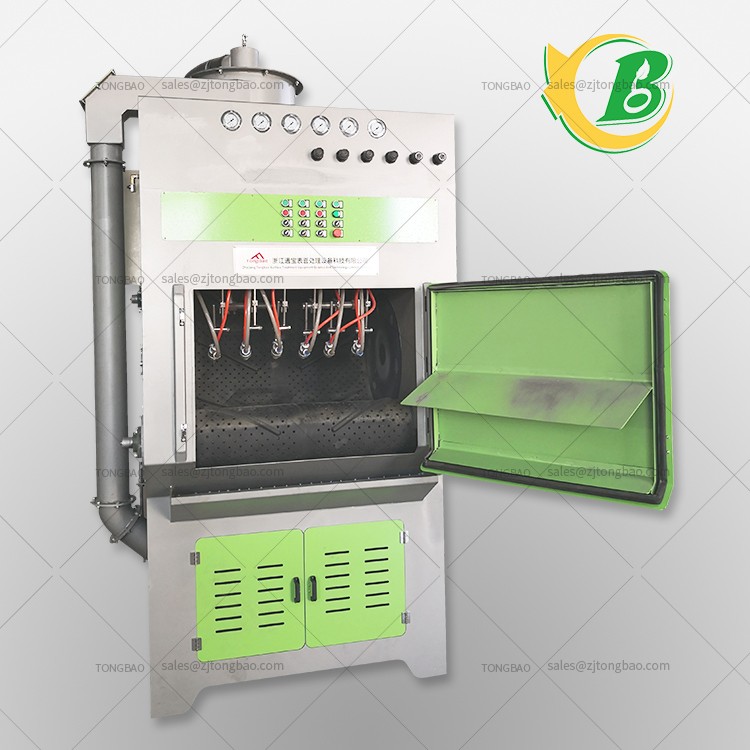

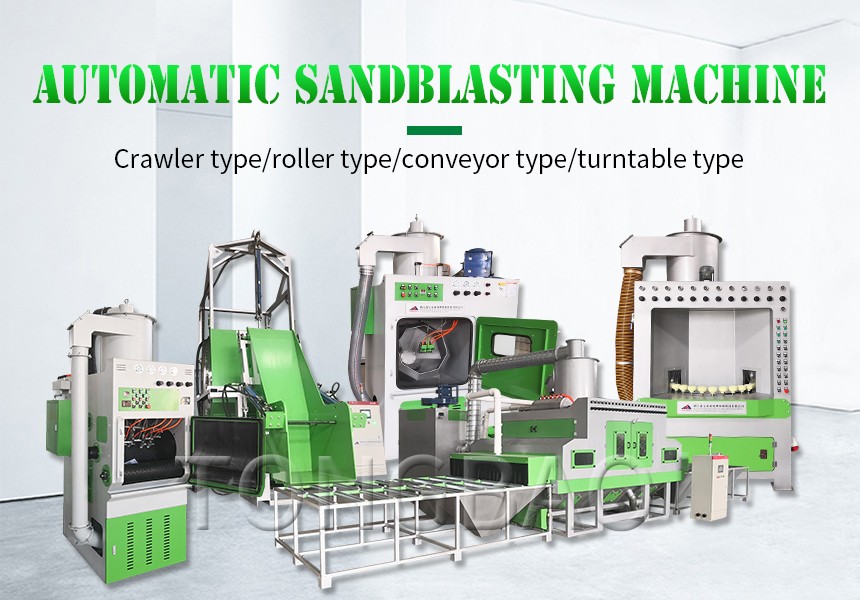

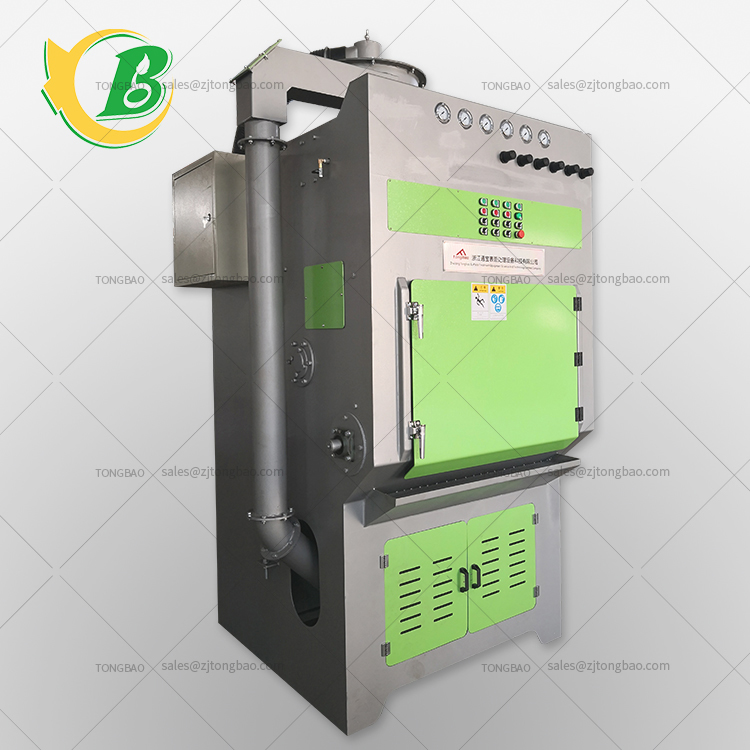

Multi-model crawler automatic sandblasting machine factory direct sales
Tracked automatic sandblasting machine Application scope: Suitable for automatic sandblasting of a large number of small workpieces, such as heat sinks, powder metallurgy products, zinc aluminum die-casting products, bakelite products, plastic products, screws, gears, acrylic, sockets, wrenches, scissors and other small parts.
TB-NA600-8A Dimensions (mm): 1600(L)*1700(W)*3000(H) Processing space size (mm): φ600(D)*1000(L) Maximum load (kg): 200 Maximum weight of single workpiece (kg): ≤15 Number of spray guns (hands): 8 Spray gun working method: electric swing Power supply: 380V, 50HZ Total power (kW): about 6.8 Compressed air source pressure bar (kg/cm2): 5-8 Compressed air source air volume (m3/min): 6.4—9.6 Compressed air input caliber (inch): 1 Separator fan (KW): 5.5 Dust removal power (hp): 7 Separator size (mm): φ500*858 (H) Air volume of separator (m3/min): 45 Product quality (kg): 1300 Door opening method: front opening pneumatic / front opening manual TB-NA1000-12A Dimensions (mm): 1775(L)*2150(W)*3000(H) Processing space size (mm): φ1000(D)*1120(L) Maximum load (kg): 750 Maximum weight of single workpiece (kg): ≤30 Number of spray guns (hands): 12 Spray gun working method: electric swing Power supply: 380V, 50HZ Total power (kW): about 10 Compressed air source pressure bar (kg/cm2): 5-8 Compressed air source air volume (m3/min): 9.6—14.4 Compressed air input caliber (inch): 1 Separator fan (KW): 7.5 Dust removal power (hp): 10 Separator size (mm): φ500*858 (H) Air volume of separator (m3/min): 60 Product quality (kg): 2000 Door opening method: front opening pneumatic / front opening manual
