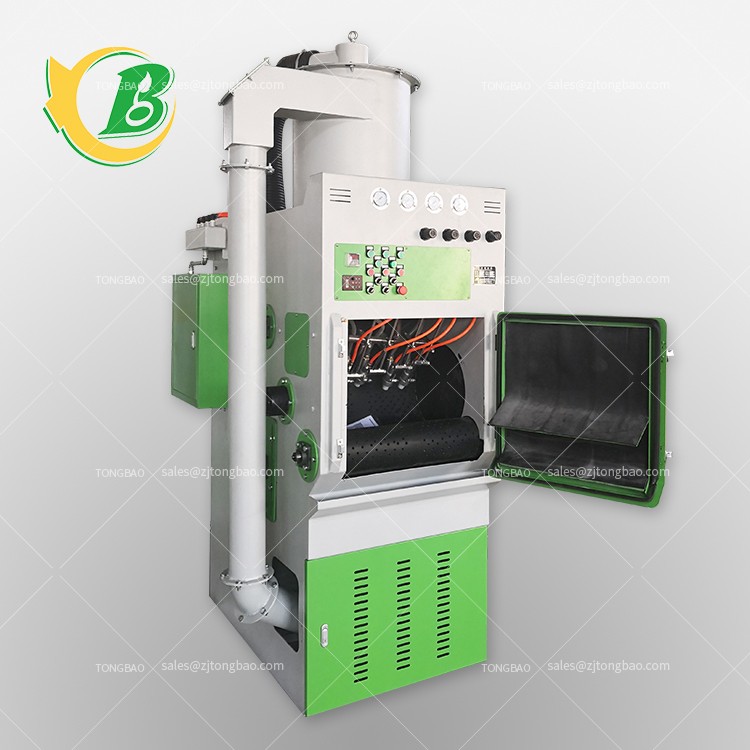

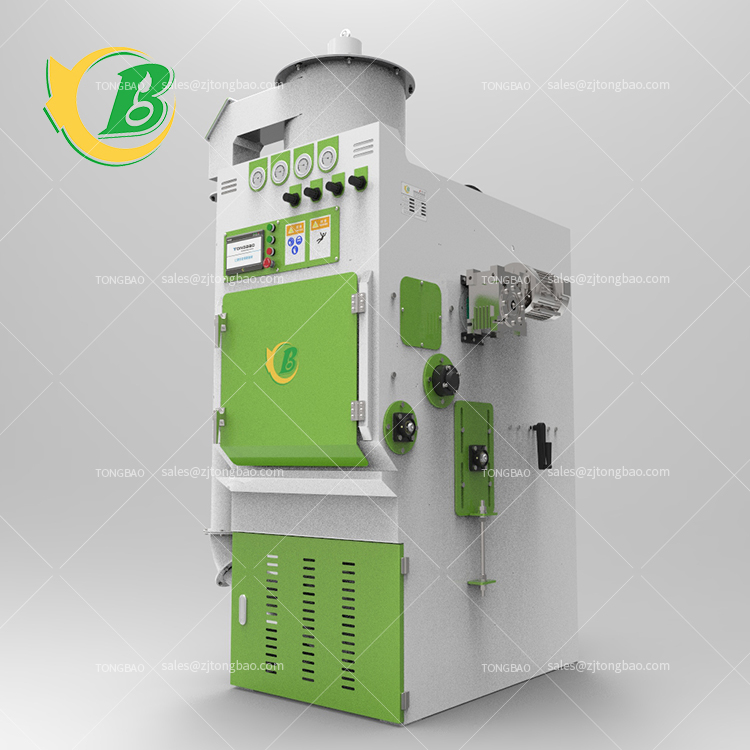

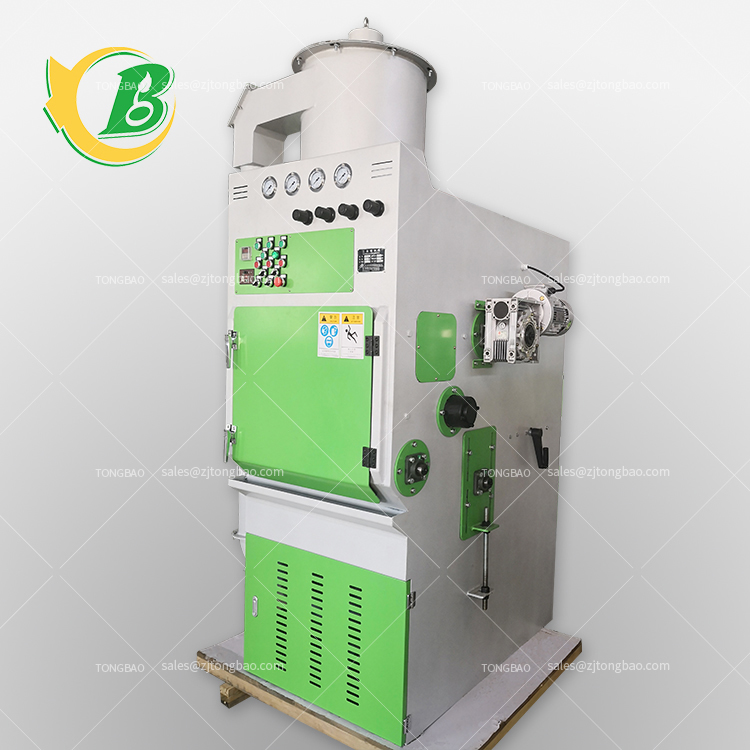

High efficiency crawler automatic sandblasting machine TB-NA400-4A

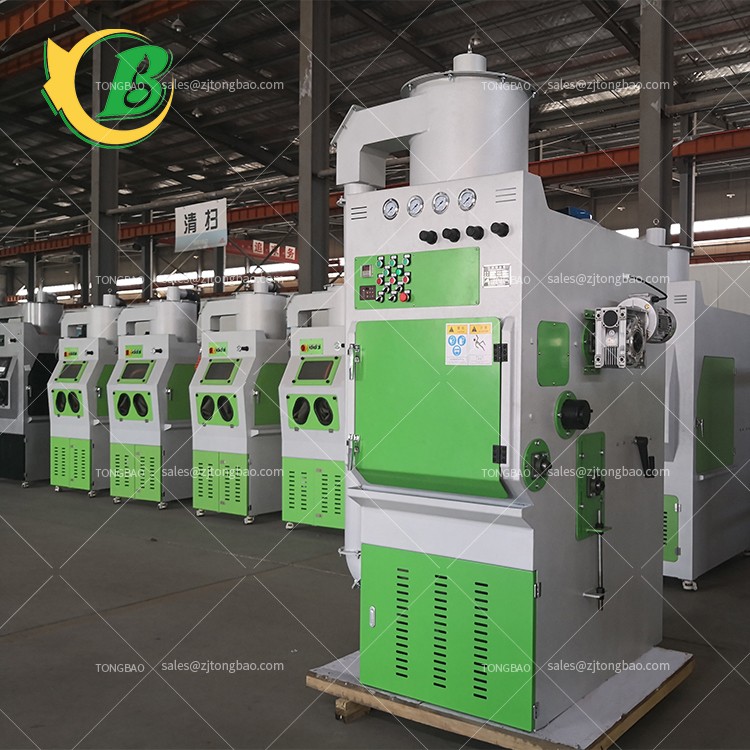

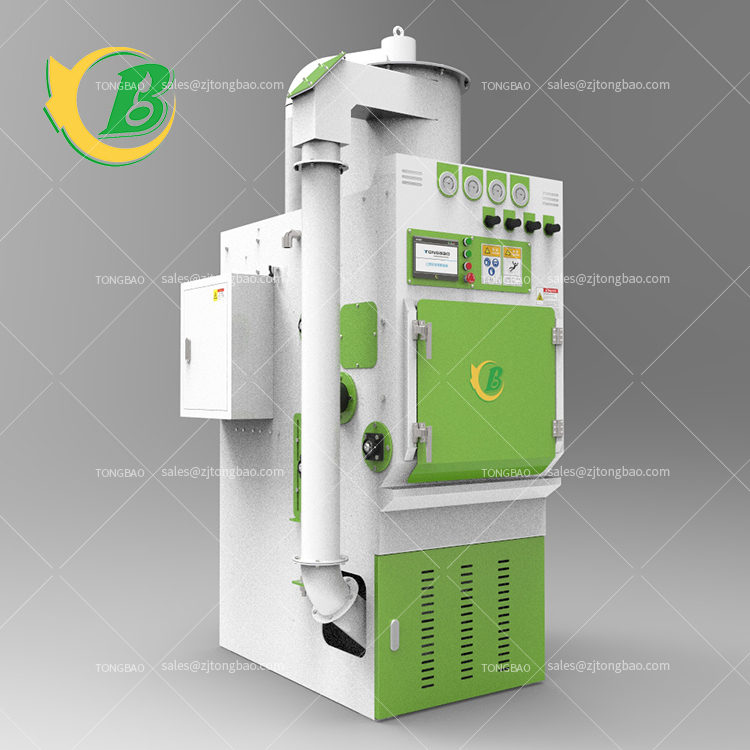

TB-NA400-4A crawler automatic blasting machine
Features: 1. It is very suitable for automatic sandblasting operations that are not afraid of collision with small parts, and can add a lot of work each time. 2. During operation, you only need to place the workpiece quantitatively into the ring, set the sandblasting time, and then start the sandblasting operation. The operation and maintenance are simple and easy to learn. 3. Press the turning button of the ring belt to automatically discharge the material, which is very convenient and labor-saving.
Dimensions (mm): 1350×1500×2650 Processing space size (mm): φ400×620 Maximum load: ≤ 100 kg Maximum weight of single workpiece: ≤ 8 kg Number of spray guns: 4 Spray gun working method: electric swing Power supply: 380V, 50HZ Total power: about 3.5KW Compressed air source pressure: 5-8 bar (kg/cm2) Compressed air source volume: 3.2-6 m3/min Compressed air input diameter (mm): 33 (1 inch) Separator fan: 2.2KW Dust removal power: 3hp Separator size (mm): φ500×858 Product quality: 1050 kg Door opening method: front opening pneumatic / front opening manual
