Multi-model mobile single-head shot blasting machine road surface cleaning machine

No price
  • Product Description
  • Product Parameter

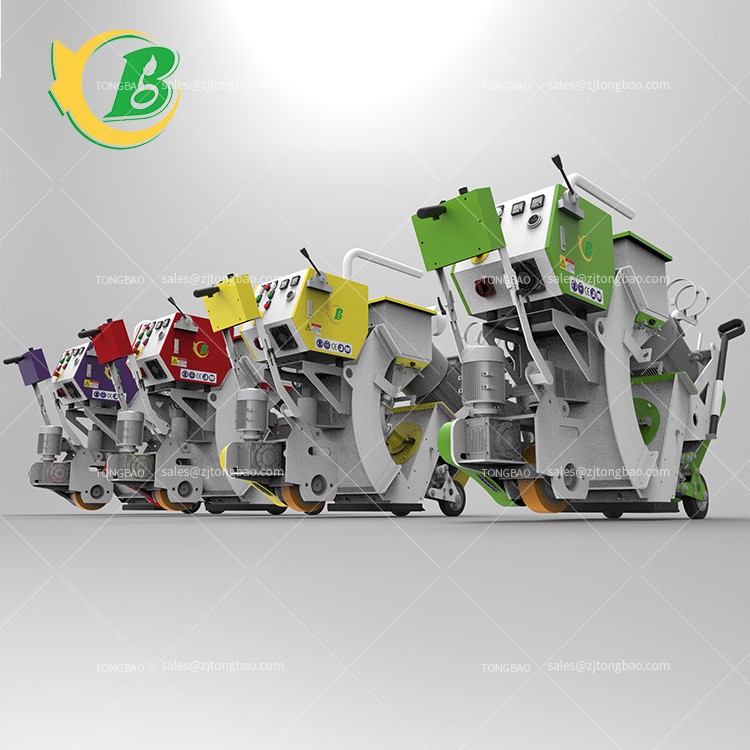

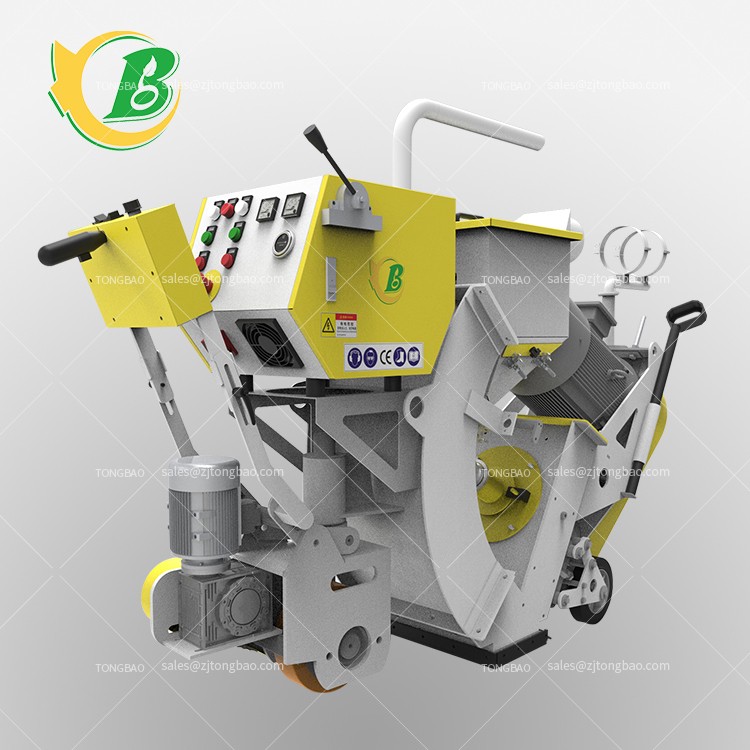

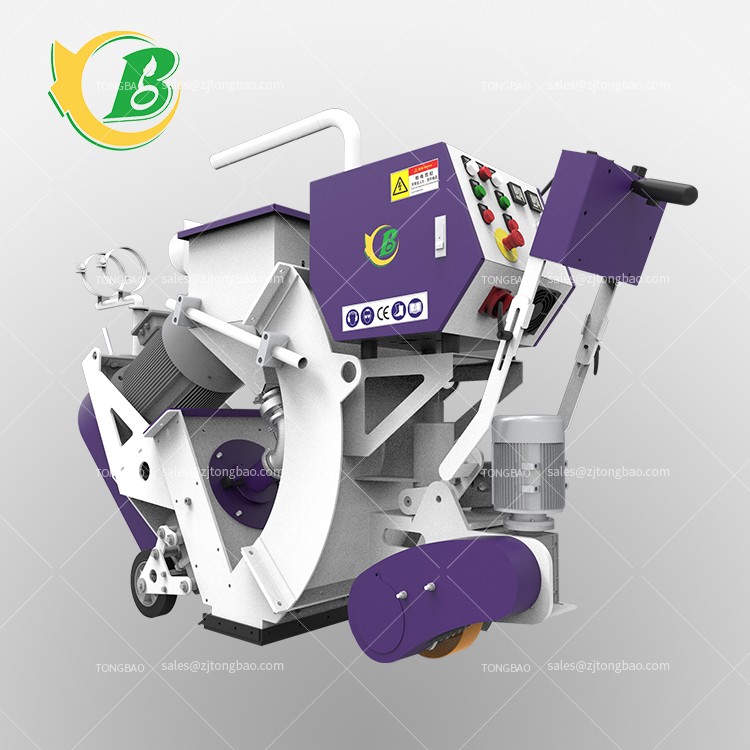

Mobile single-head shot blasting machine (road cleaning machine)

APPLICATION

Tongbao mobile shot blasting cleaning systems is a cost-effective and environmentally friendly method for preparing concrete and steel surfaces. This labor and time-saving process strips, cleans and proles simultaneously. It leaves the surface immediately ready for the application of coatings or overlays—eliminating drying time and costly disposal procedures associated with other surface preparation methods.



Mobile single-head shot blasting machine (road cleaning machine) parameters

Type:TB-MS200

ORDERING CODES: 00201039

Arbeitsbreite: 加工宽度:

200mm

Production Capacity:生产效力:

40㎡/hr.

Travel Speed: 行进速度:

 0.5-23m/min

Voltage: 电压:

220 V/380V, 1ø/3ø, 50 Hz

Blast Motor:喷丸电机:

3kw

Amperage:电流:

13A

Matching Minimum Generator:

配套最小发电机:

15kw

Weight: 重量:

160kg

Dimensions尺寸 (L x W x H):

1320x 410 x 1400

Dust Collector: 除尘器:

BDC-44

Air capacity: 空气流量:

7,5 m3/min (min)

Dust Hose Connection: 除尘软管接头:

ø 76mm

Type:TB-MS250

ORDERING CODES: 00201039

Arbeitsbreite: 加工宽度:

250mm

Production Capacity:生产效力:

90㎡/hr.

Travel Speed: 行进速度:

0-26m/min

Voltage: 电压:

380V/460V, 3ø, 50 Hz/60 Hz

Blast Motor:喷丸电机:

7.5kw

Amperage:电流:

15A /18.5A

Matching Minimum Generator:

配套最小发电机:

30kw

Weight: 重量:

320kg

Dimensions 尺寸(L x W x H):

1600x 435 x 1020

Dust Collector: 除尘器:

BDC-44

Air capacity: 空气流量:

28 m3/min (min)

Dust Hose Connection: 除尘软管接头:

ø 100mm

Type:TB-MS300

ORDERING CODES: 00201039

Arbeitsbreite: 加工宽度:

300mm

Production Capacity:生产效力:

110㎡/hr.

Travel Speed: 行进速度:

 0-26m/min

Voltage: 电压:

380V/460V, 3ø, 50 Hz/60 Hz

Blast Motor:喷丸电机:

11kw

Amperage:电流:

21A /23.5A

Matching Minimum Generator:

配套最小发电机:

40kw

Weight: 重量:

335kg

Dimensions尺寸 (L x W x H):

1600x 435 x 1050

Dust Collector: 除尘器:

BDC-44

Air capacity: 空气流量:

28 m3/min (min)

Dust Hose Connection: 除尘软管接头:

ø 130mm

Type:TB-MS350

ORDERING CODES: 00201039

Arbeitsbreite: 加工宽度:

350mm

Production Capacity:生产效力:

160㎡/hr.

Travel Speed: 行进速度:

0-26m/min

Voltage: 电压:

380V/460V, 3ø, 50 Hz/60 Hz

Blast Motor: 喷丸电机:

15kw

Amperage:电流:

29.4A /33.5A

Matching Minimum Generator:

配套最小发电机:

60kw

Weight: 重量:

385kg

Dimensions 尺寸(L x W x H):

2010x 590 x 1100

Dust Collector: 除尘器:

BDC-44

Air capacity: 空气流量:

28m3/min (min)

Dust Hose Connection: 除尘软管接头:

ø 130mm
