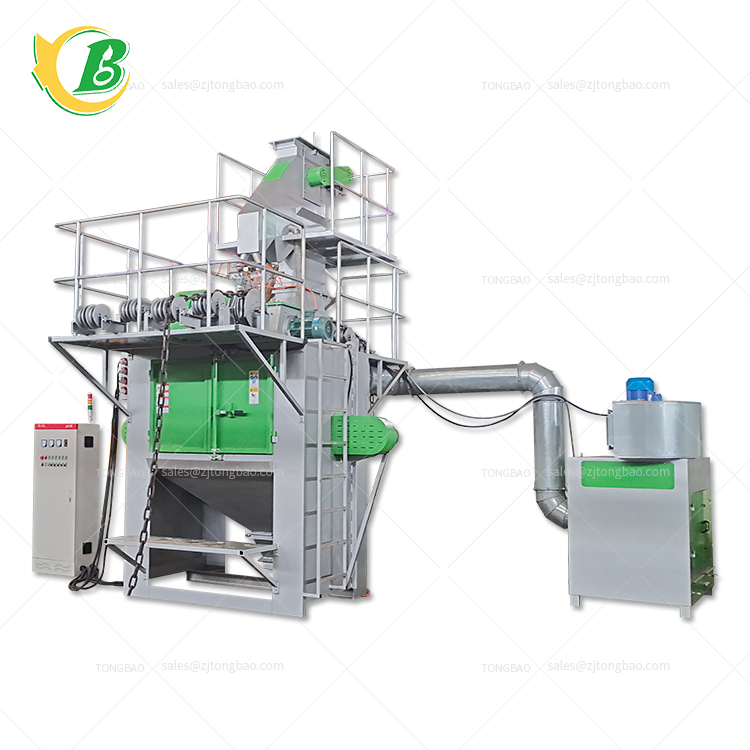

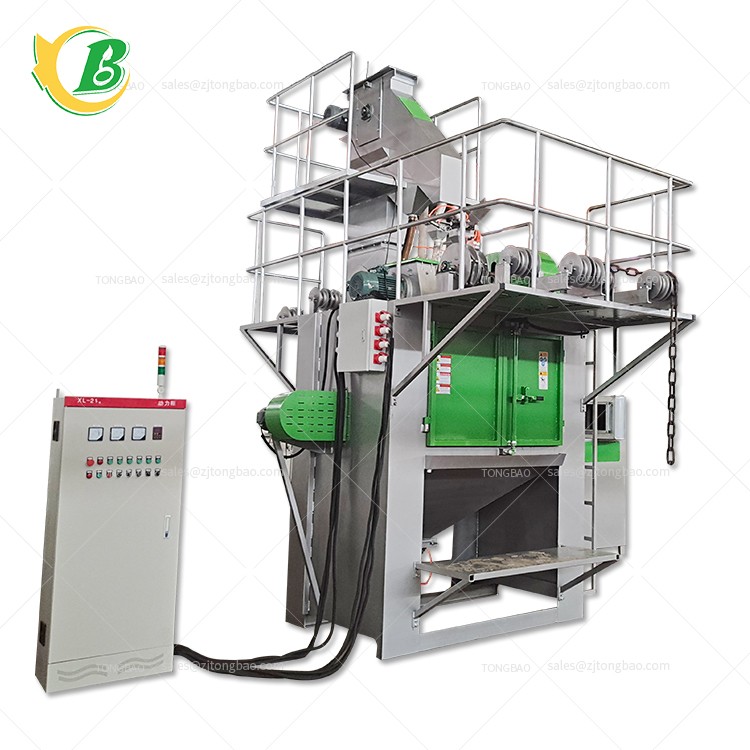

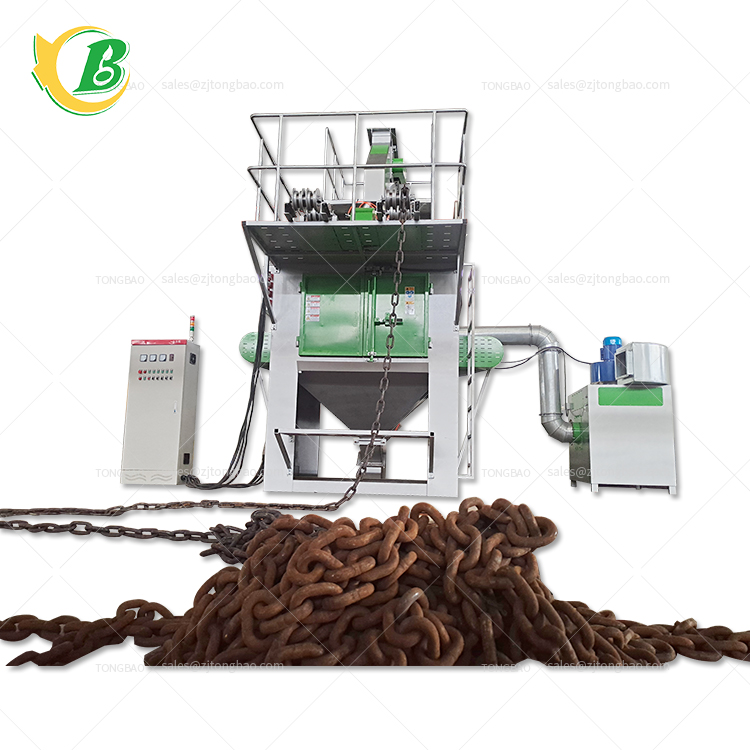

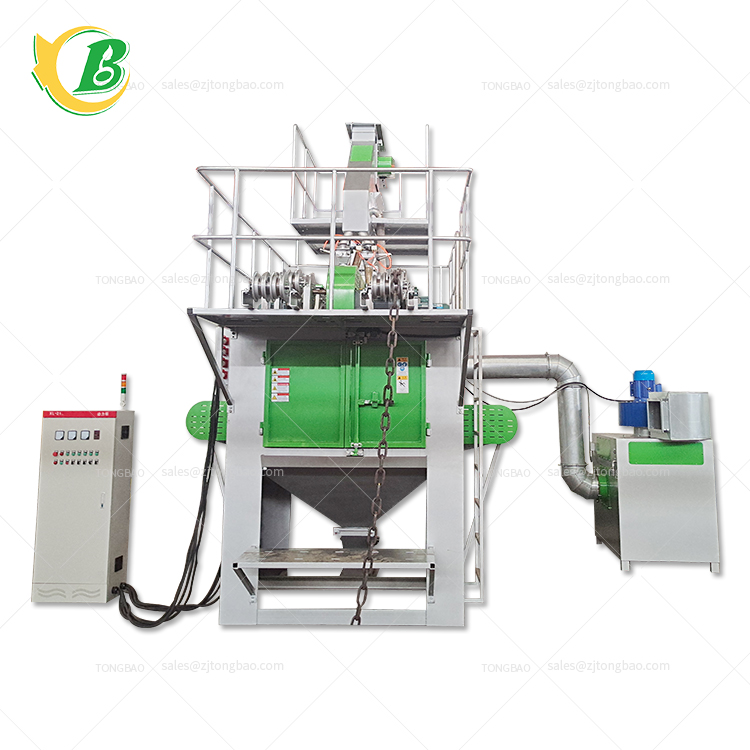

Chain dedicated continuous automatic shot blasting machine TB-SQ236-2P

Equipment parameters of chain automatic shot blasting machine:

1. Working object: industrial lifting chain φ5-18mm

2. Processing method: continuous

3. The number of processing jobs: two processing at the same time

4. Processing work conveying speed: 0.5~3.0m/min frequency conversion speed regulation

5. Workpiece conveying motor: 1.5kw

6. Shot blasting machine:

     Speed: 2930r/min

     Impeller diameter: φ400mm

     Shot blasting volume: 190kg/min×2 sets

     Shot blasting machine power: 7.5kW×2 sets

7. Flip the workpiece:

     Flip method: swing left and right

8. Projectile sand shot material:

    Sand shot diameter: 0.2~1.5mm

   First input: 600kg

9. Hoist:

   Lifting capacity: 30t/h

   Pitch: 200mm

   Lifting motor: 3.7kw

10. Separator

   Separation capacity: 30t/h

11. Dust collector

   Dust removal method: cartridge type

   Dust collection air volume: 4012~7419m3/h

   Dust collecting fan: 5.5kw

   Dust collection efficiency: 99.9%

   Dust collection emission concentration: <96mmg

   Air volume for back blowing dust cleaning: 1m3/min

   Air pressure for back blowing dust cleaning: 0.5~0.8mpa

12. Equipment noise: <93 decibels (JB/T835

13. Total installed capacity: about 30kW

14. Machine dimensions (L×W×H) 4800mm×4200mm×4000mm

15.Total weight of the machine: about 5500kg
