Product Detail

30L rubber crawler shot blasting machine for small workpieces

: ~~No price~~

Product Description
Product Parameter

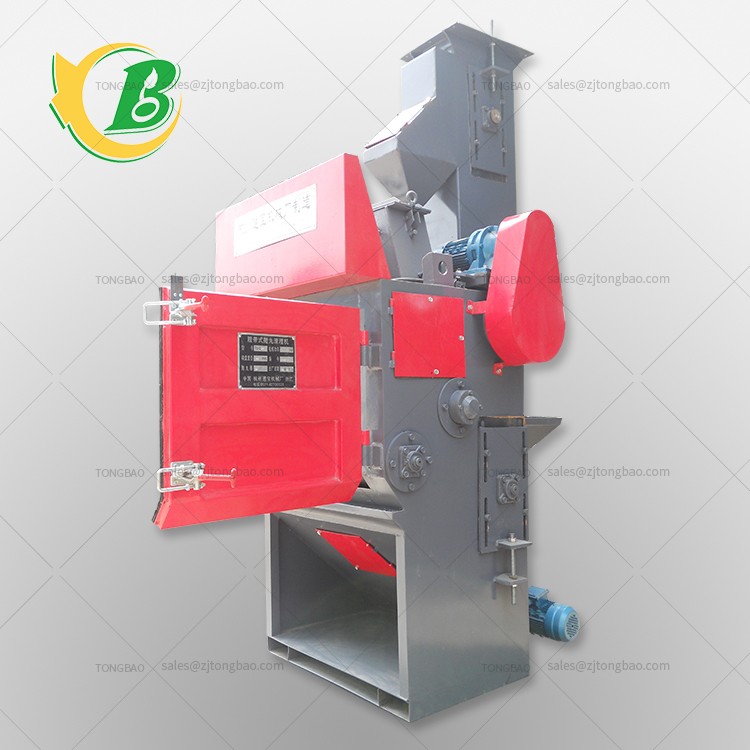

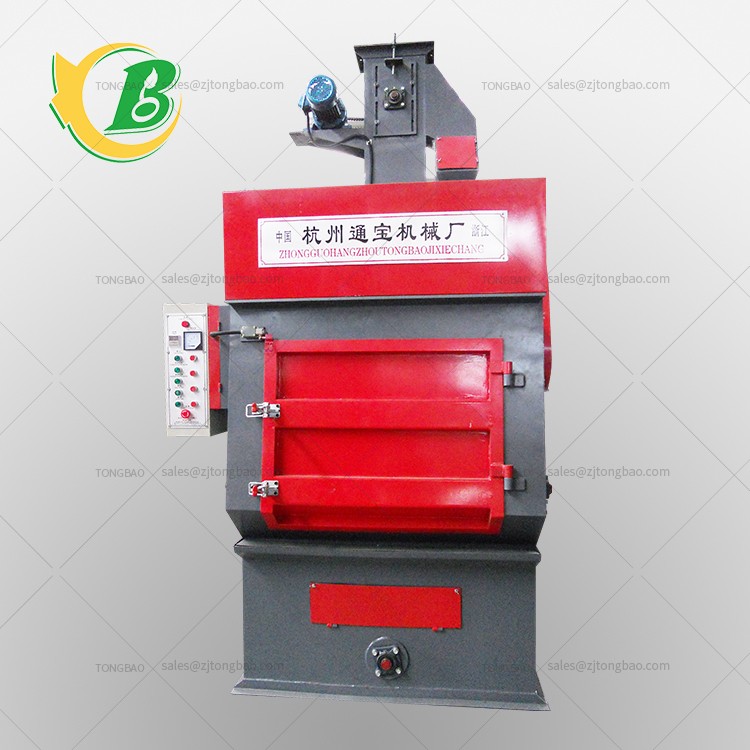

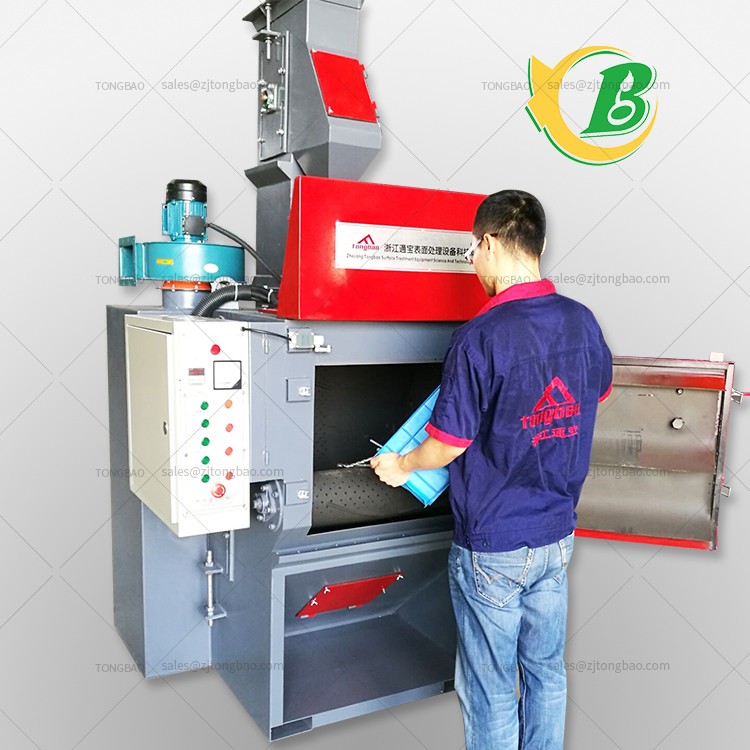

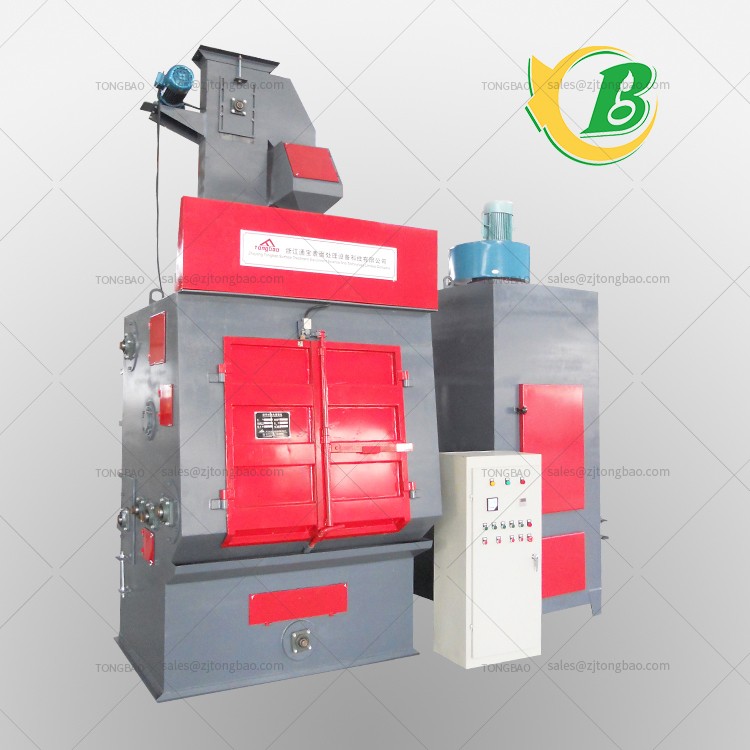

30L Rubber Crawler Shot Blasting Machine

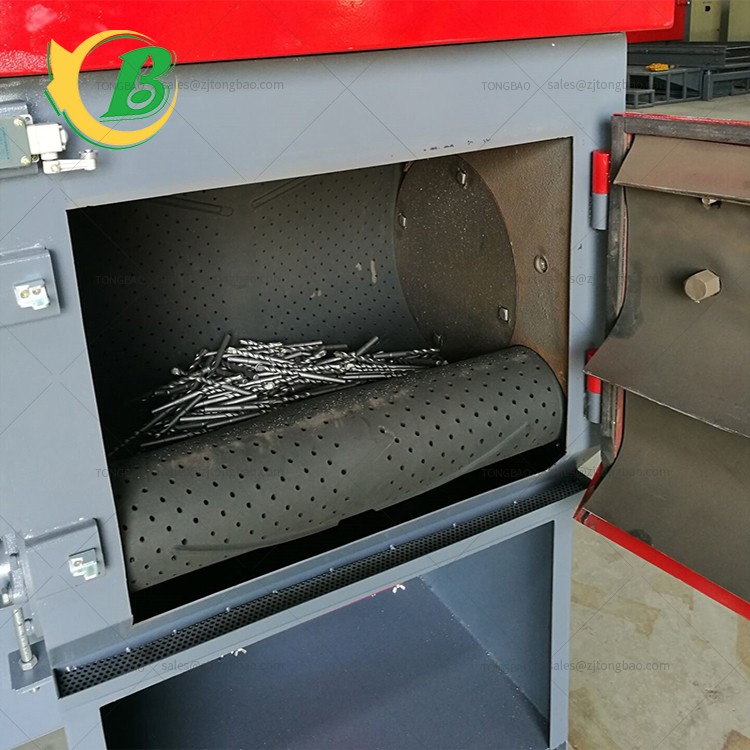

Rubber belt drum shot blasting machine is specially designed for manufacturers who need efficient, reliable, high-volume sandblasting.

Model parameters of rubber crawler shot blasting machine

Specifications 产品规格	TB-NAW 30	TB-NAW 100	TB-NAW 180	TB-NAW 350	TB-NA 350-2	TB-NA 550
Fill capacity (l) 加料量（升）	30	100	180	350	350	550
Belt dimensions ⌀x width in mm 履带直径尺寸x宽度，单位mm	400 x 620	600 x 900	800 x 900	1000 x 1120	1000 x 1350	1200 x 1200
Max. single work piece weight (kg) 最大单件工件重量（kg）	10	10	15	25	25	25
Max. weight of load (kg) 最大载重量（kg）	100	200	400	600	800	1000
Work piece transport 工件卸料运输机	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的
Turbine抛丸器 (number数量 x kW)	1 x 4 1 x 5,5	1 x 7,5	1 x 7,5 1 x 11	1 x 11 1 x 15	1 x 7.5 1 x 11	1 x 11 1 x 15
Loader上料机	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的	Optional 可选的
Filter unit集尘机	TB-DC2/2	TB-DC2/3	TB-DC2/4	TB-DC3/3	TB-DC3/4	TB-DC3/4
