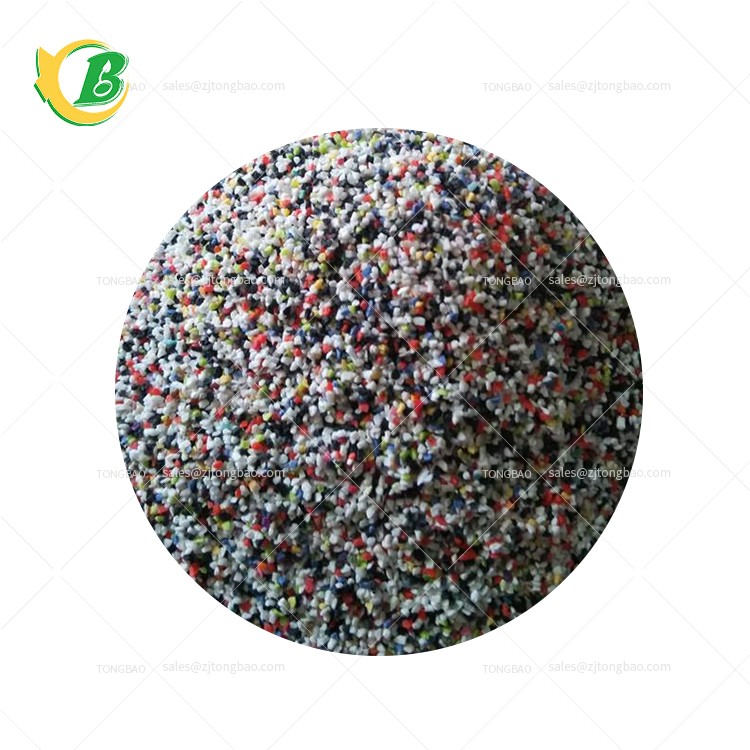

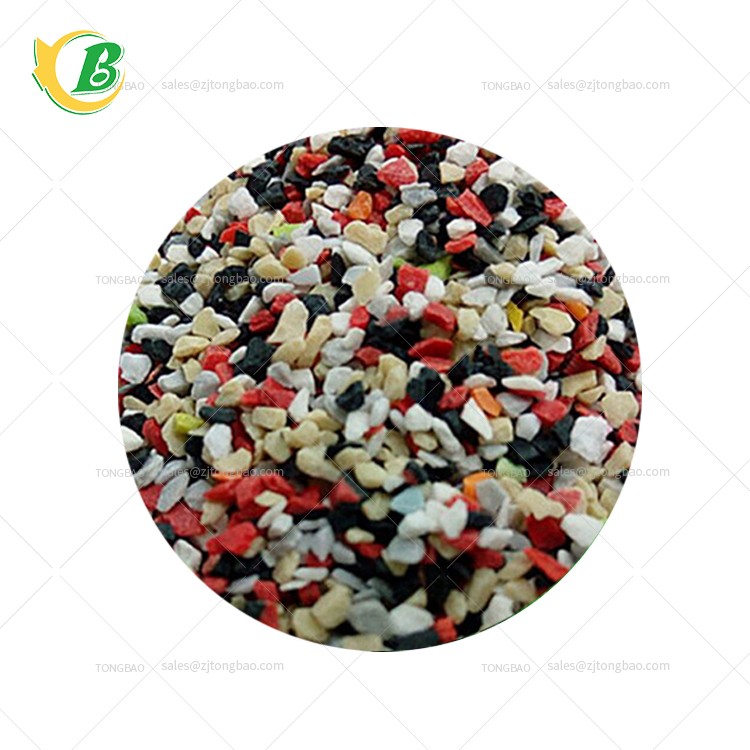

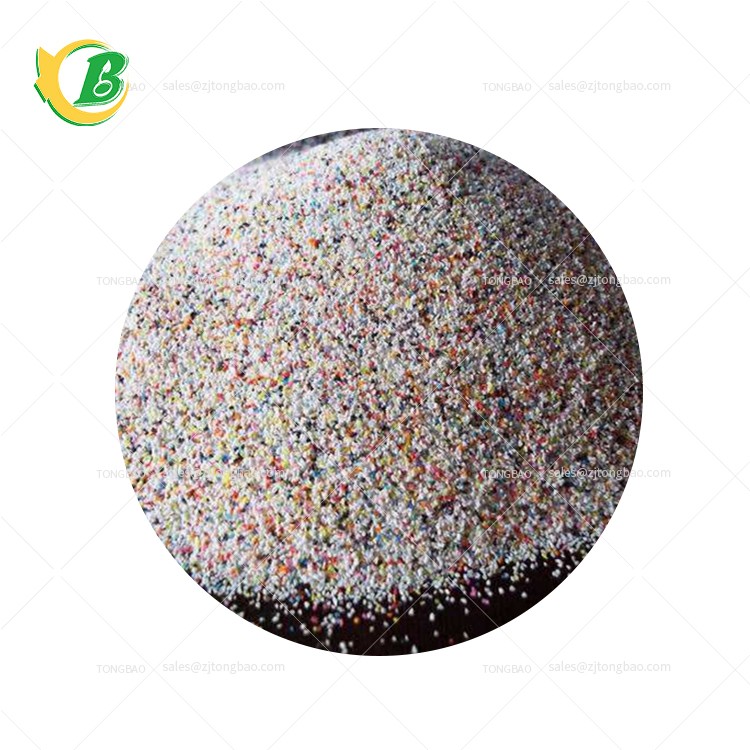

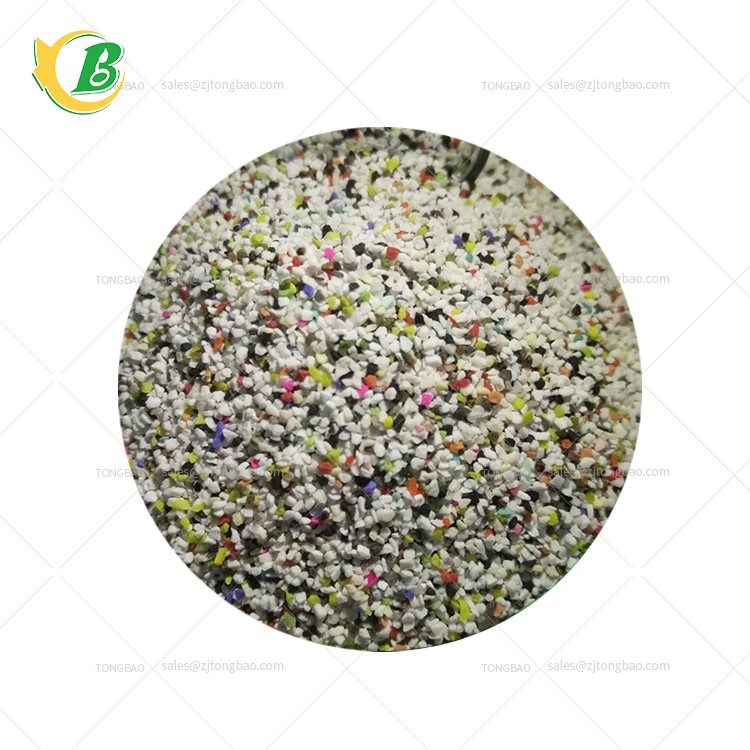

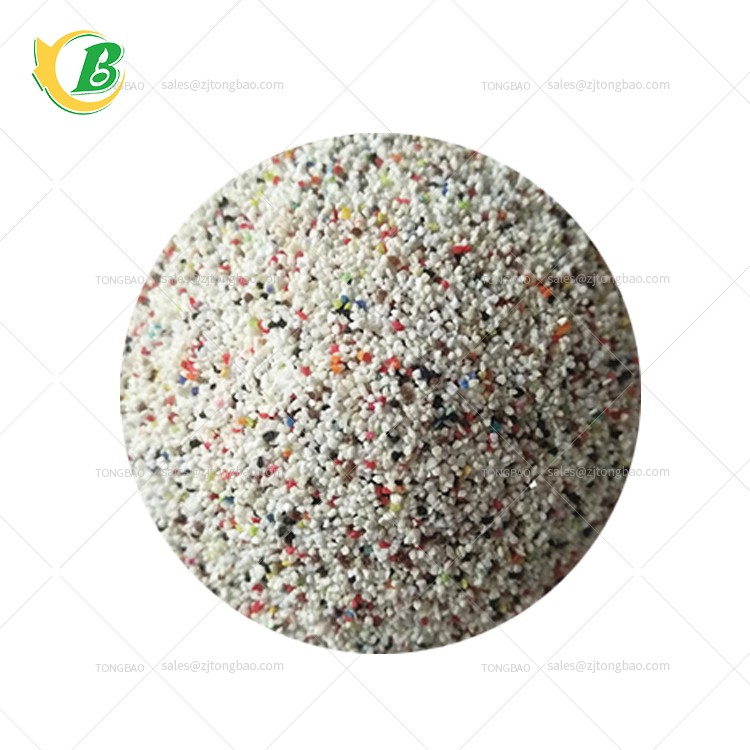

Plastic sand abrasive resin sand grinding media

No price
  • Product Description
  • Product Parameter

Under a certain air pressure, the granular polymer abrasive (resin sand abrasive) is sprayed on the surface of the workpiece to achieve the cleaning effect quickly and without damage.

Plastic abrasive use:

 1. The surface treatment of the workpiece, the pretreatment before the surface coating of the workpiece, and the change of the mechanical properties of the workpiece, and the finishing of the surface of the workpiece.

 2. Resin sand should have fields: aviation industry, shipbuilding industry, automobiles, motor cars, machinery manufacturing, molds, rubber, electronics and other fields.

The resin sand applications are as follows:

 ⑴Pre-treatment (surface treatment) electroplating, spraying, painting, etc. are covered by sandblasting before processing;

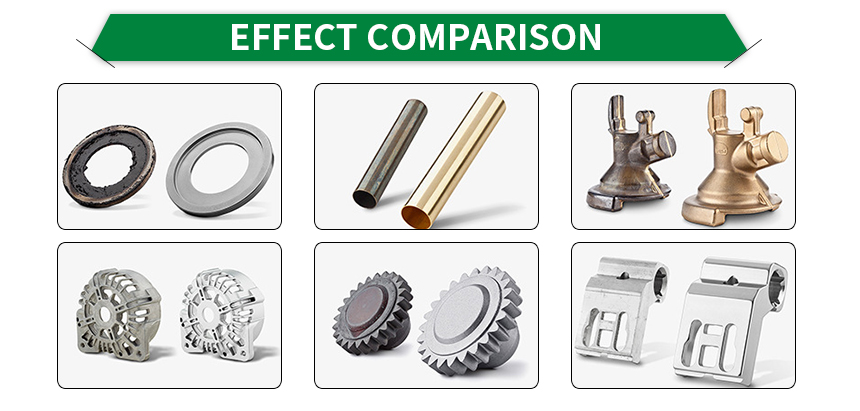

 ⑵Cleaning: metal workpieces such as casting parts, stamping parts, welding parts, heat-treated parts, etc., to remove oxide scale, residue, and dirt; clean non-metallic surfaces to get rid of hard shells containing carbon dust.

 ⑶ Refurbishment of old parts: refurbishment and cleaning of all moving parts such as automobiles, motorcycles, and electromechanical equipment, which can be depainted and peeled.

 ⑷Burr treatment: the removal of tiny burrs on machined parts and the removal of burrs on the rubber surface (if applicable to the field of rubber tires).

 ⑸Light decoration: all metal products and non-metal products (plastic, crystal, glass, etc.) surface traces are eliminated, and the matte matte surface treatment enhances the quality of the product surface.

 ⑹Clean oil field oil pipes and valve pipelines. There will be no static electricity or sparks during the cleaning process, which ensures the safety factor during the operation.

Technical parameters of plastic sand

Item



Main Specifications

Type Ⅱ

Type Ⅲ

Chlorine content%

Trace 1%

Trace 1%

PH value

4-8PH

4-8PH

Conductivity us/cm

100us/cm

100us/cm

Water absorption%

10.0%

10.0%

Bulk density g/cm3

0.6-0.7 g/cm3

0.6-0.7 g/cm3

Colour

White or mixed particles of multiple colors

White or mixed particles of multiple colors

Barcol hardness HB a

54-62 HB a

64-72 HB a

Qualitative Infrared Spectroscopy

Urea formaldehyde resin

Melamine resin

Paint stripping rate (square feet/min)

0.15 square feet per minute

0.15 square feet per minute

Initiative (mg/cm2)

0.50 mg/cm2

3.00 mg/cm2

Consumption rate

  (one cycle)

13%

13%

Granularity selection

12 - 16 # (1.70 - 1.20 mm)16 - 20 #( 1.20 - 0.85 mm)
20 - 30 # (0.85 - 0.60 mm)30 - 40 # ( 0.60 - 0.43 mm )
40 - 60 # (0.43 - 0.25 mm)
60 -100 # ( 0.25 - 0.15 mm )

Relevant parameters of resin sand used under normal conditions


Nozzle pressure (psi)ī/ c㎡

45psi)ī/c

45psiī/c

Spraying speed, feeding speed (lb/h, 0.454 kg/h)

140~170 lb/h

125~155 lb/h

Jet grinding rate (square feet/minute, 929 square centimeters/minute)

0.15 (140 cm2/min)

0.15 (140 cm2/min)

Maximum corrosivity (mg/cm2)

0.50 mg/cm2

3.00 mg/cm2

Average abrasive consumption (%/time)

13%/time

13%/time

ngle

75°

75°

distance (cm)

 30-50 cm

 30-50 cm

Nozzle diameter(cm)

8cm

8cm

Mesh

16-20mesh

16-20mesh
