High-quality high-alumina porcelain abrasive

No price
  • Product Description
  • Product Parameter

High-alumina porcelain is mainly made of high-quality ultra-fine calcined alumina powder, zirconia and ceramic bonding agent, which is rolled and calcined at high temperature. The surface grinding and polishing precision of parts is high. The particle size is generally finer than W63. It is mainly used The precision polishing of the surface of various metal and non-metal parts after rough polishing and medium polishing can be used together with matching brighteners, which can greatly improve the brightness of the surface of the parts. The cutting force can be strong in the vibrating finishing machine.

It is commonly used for surface polishing, light cutting, fine polishing, vibration light, surface treatment before chemical treatment, and fine grinding before electroplating of products made of aluminum alloy, zinc alloy, copper alloy, stainless steel, white iron, titanium alloy, resin (plastic), etc.

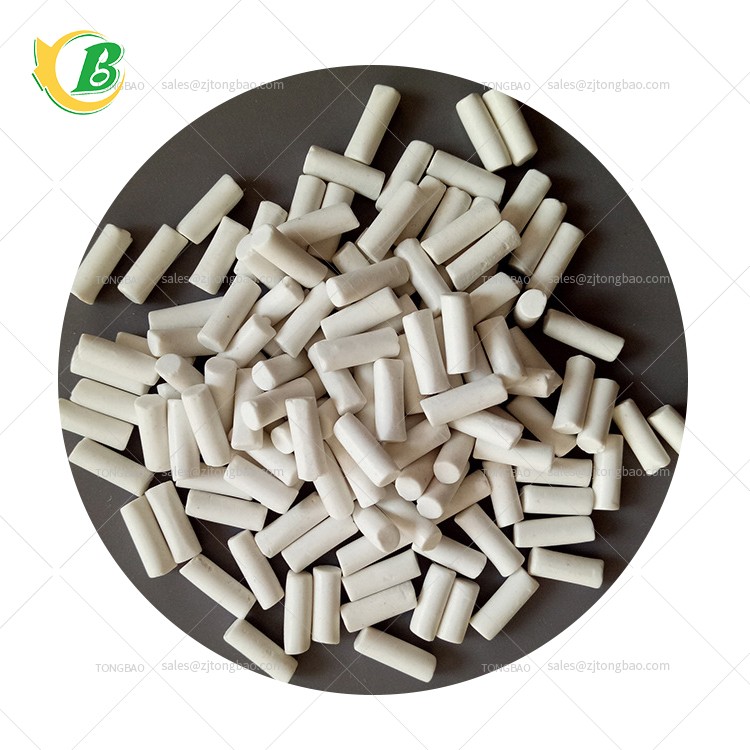

High alumina ceramic abrasive (cylindrical)

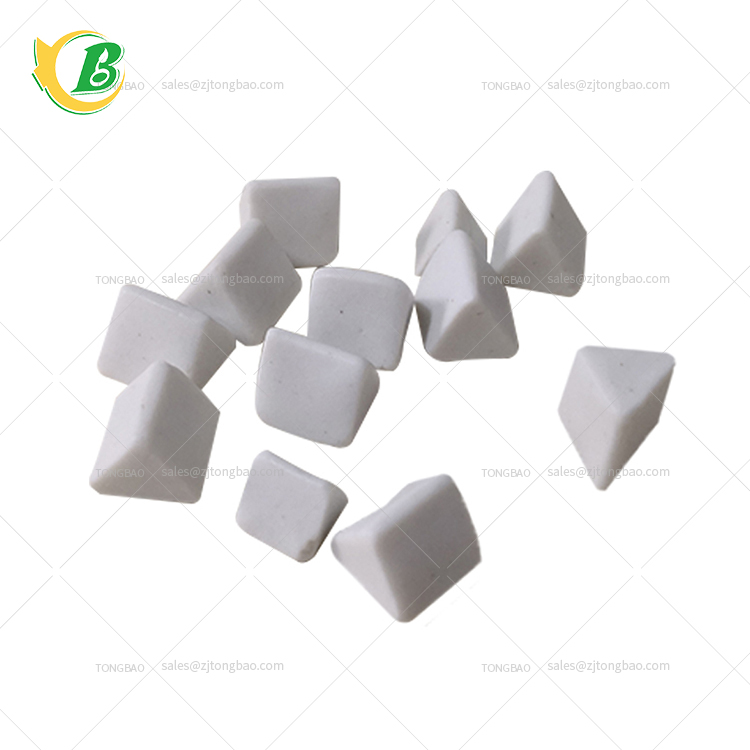

High alumina porcelain abrasive (oblique triangle)

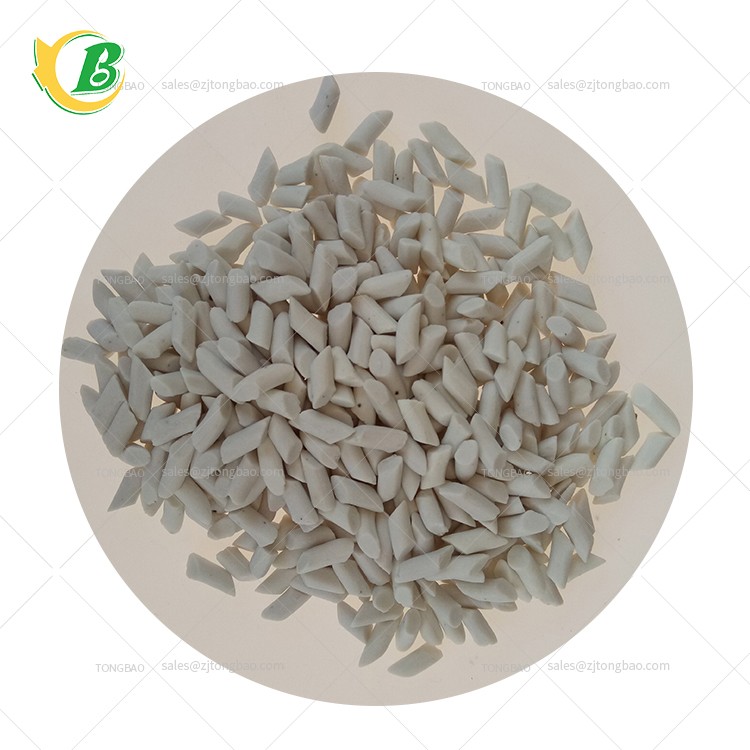

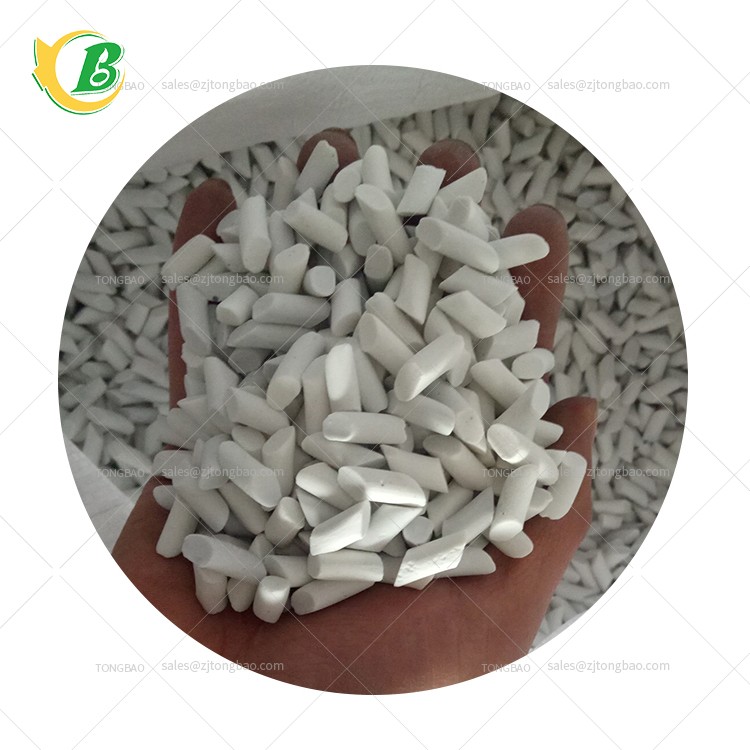

High alumina porcelain abrasive (oblique cylinder)

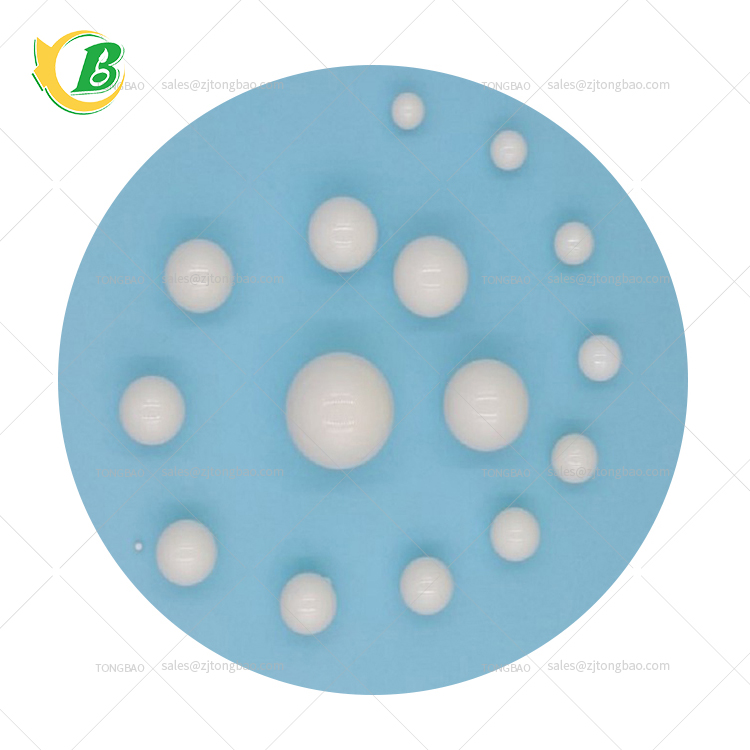

High alumina ceramic abrasive (round ball)

High alumina porcelain abrasive specifications

Project

Size(mm

Sphere

Φ1, Φ2, Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ10, Φ12, Φ14, Φ15, Φ16, Φ18, Φ20, Φ22, Φ25, Φ30

Oblique cylindrical

4, 3×6, 4×8,4×10, 5×8,5×10, 6×10,6×12,

 6×16,7×15, 8×12,8×16, 8×20, 10×16, 10×20,

10×25, 12×25,15×20, 20×30,25×25,30×30, 40×40

triangle

2, 3×3, 4×4, 5×5, 6×6, 7×7, 8×8,10×10, 12×12, 13×13, 15×15, 16×16 17×17, 20×20, 25×25, 28×28, 30×30,35×35, 40×40,50×50

Oblique triangle

2, 3×3, 4×4, 4×8, 5×5, 6×12, 6×6,7×7, 8×8,

10×10, 12×12,10×20, 15×15, 16×16, 17×17, 20×20, 25×25, 20×30, 30×30, 35×35, 40×40, 32×14
