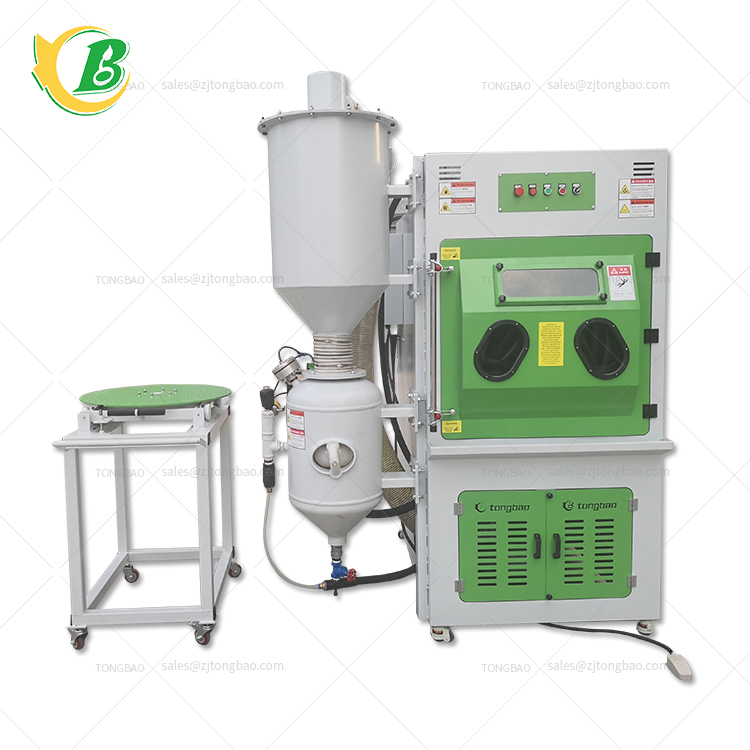

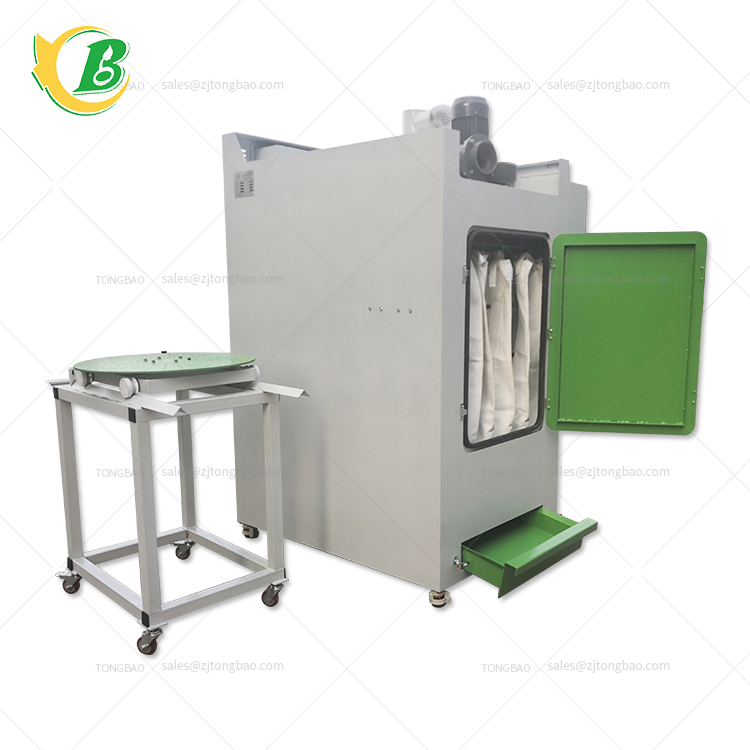

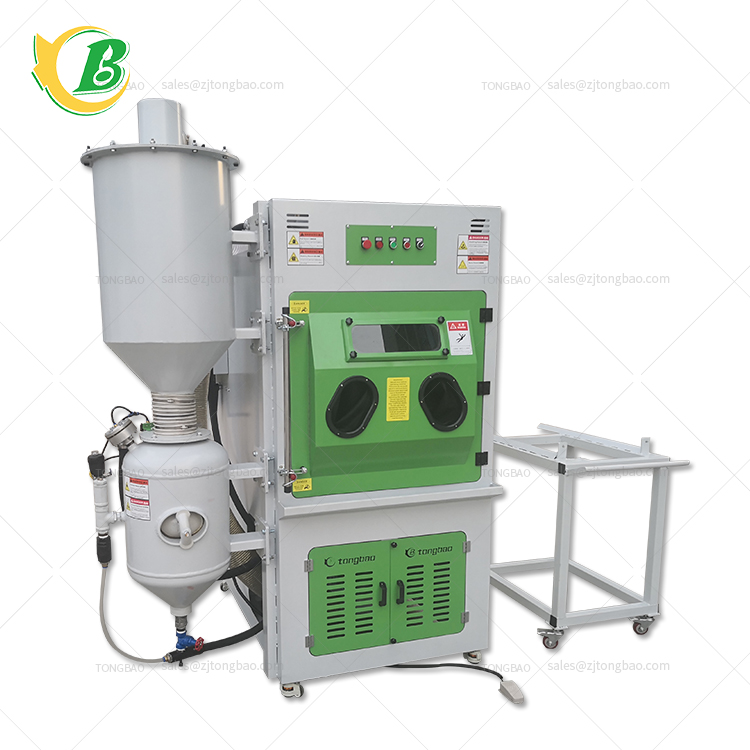

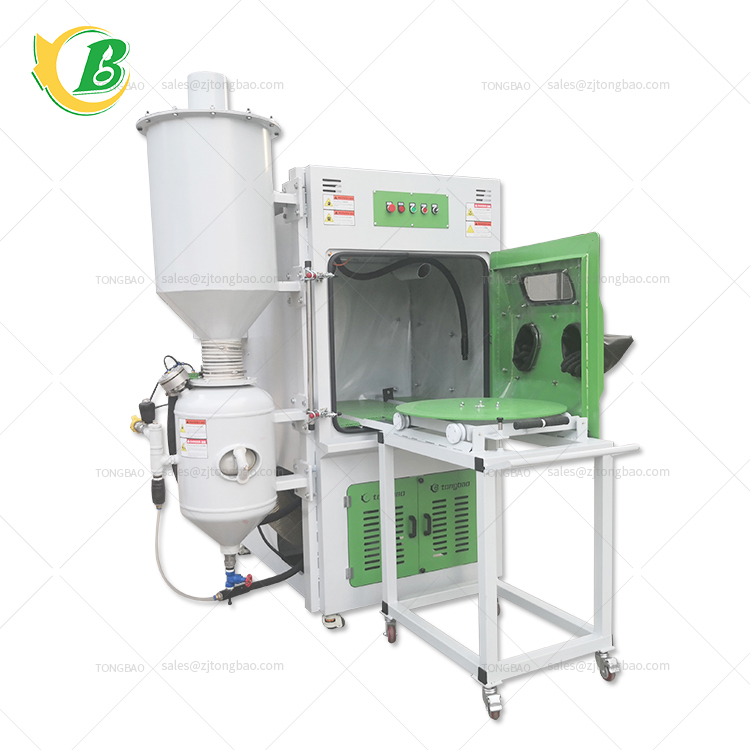

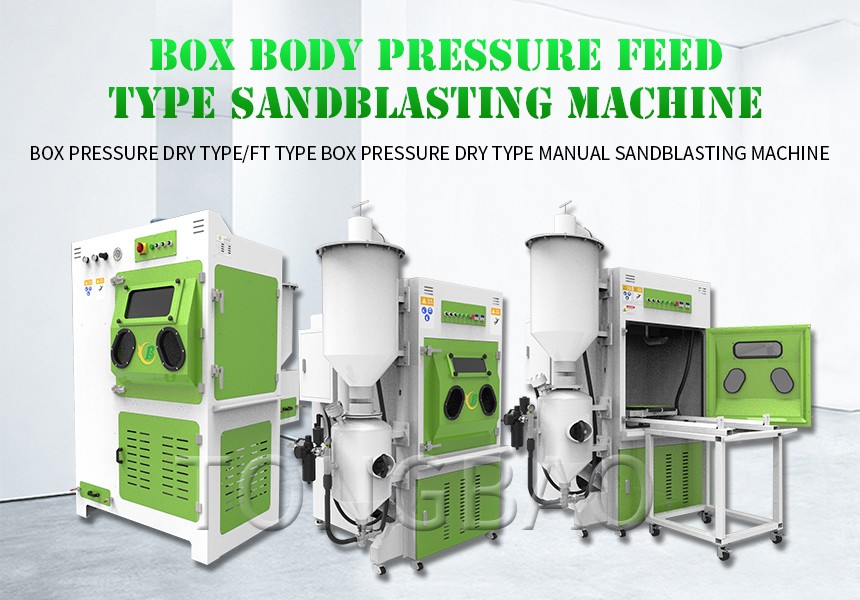

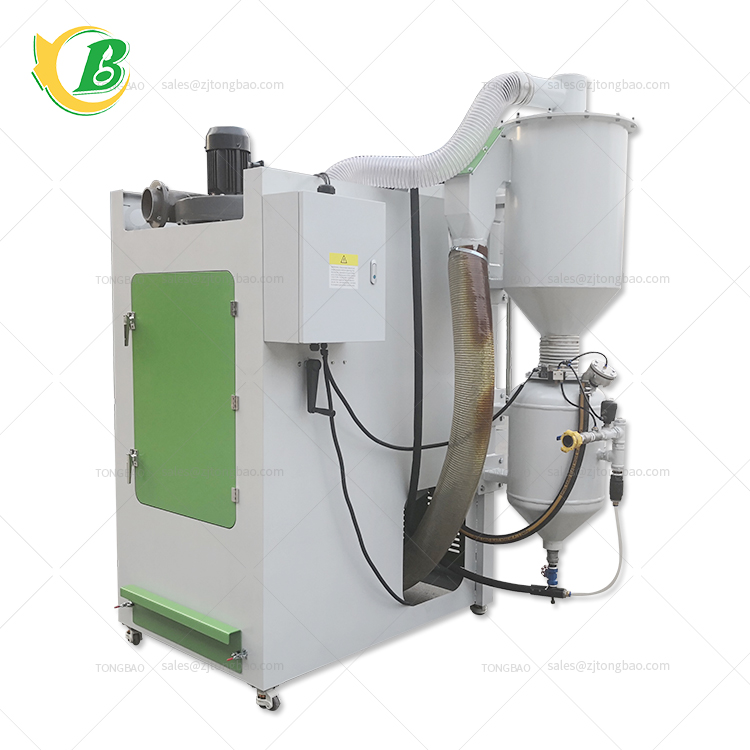

Manual high-pressure box sandblasting machine Cart turntable sandblasting equipment TB-PN1000

No price
  • Product Description
  • Product Parameter

Application scope:

Manual high-pressure box sandblasting machine (pressure sandblasting machine with trolley turntable) is mainly suitable for the sandblasting of various types of molds such as precision dewaxing, casting forging, mold shell cleaning, deep hole and shoe molds, etc. Pre-treatment of dragon, rubber embossing, roller coating, and engraving processing of high-hardness workpieces such as stone, hardware, jade, glass, and cemented carbide.

Features:

1. Adopt the pressure type to directly accelerate the sprayed sand material, and the sand material has a deeper impact point.

2. The processing speed is about 3 times faster than that of the cyclone sandblasting machine.

3. The sand material can be recycled automatically, thereby increasing the utilization rate of the sand material.

A professional model suitable for medium-sized long-lasting industrial use.

Abrasive blasting applications include cleaning, deburring, decontamination, cleaning, shot blasting, and decoration. It is suitable for long-lasting industrial use and is used for all types of abrasives for high-performance operation.

Product model: TB-PN1000

Product size (mm): 1775×1490×2530

Sandblasting bin size (mm): 1000×977×892

Door size (mm): 890×850

Product quality: about 800kg

Power supply: 220v (380), 50hz

Machine lighting: 220v, 2×12w led light

Separator motor: 380v, 50hz, 2.2KW

Air volume of separator: 29m3/min

Compressed air source pressure: 5-8bar (kg/cm2)

Compressed air source volume: 0.8—1.5 m3/min

Separator size (mm): φ500×1150

Dust removal power: 3hp

Nozzle diameter (mm): φ8

Sandblasting tank capacity: 60L

Machine can be customized items: manual/electric cart, manual/electric turntable
