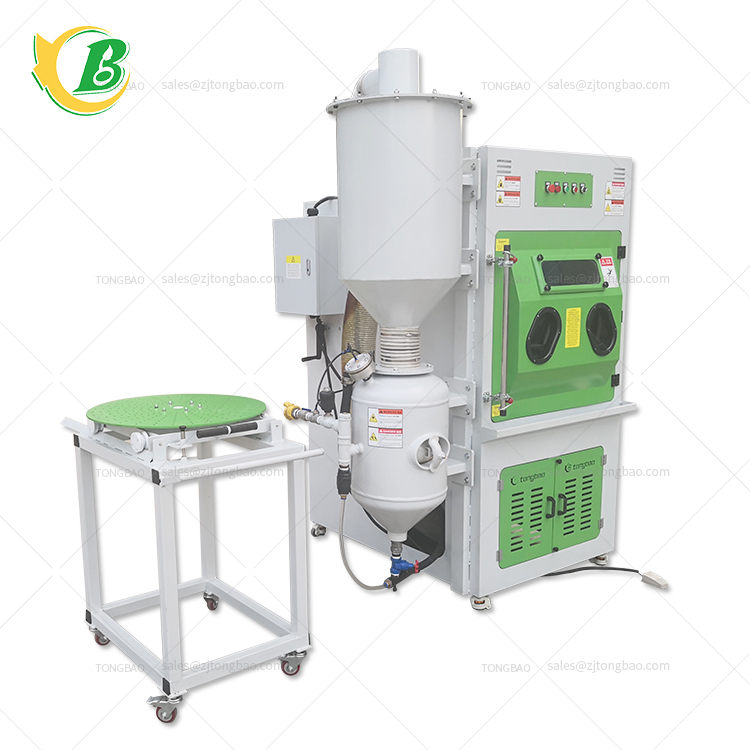

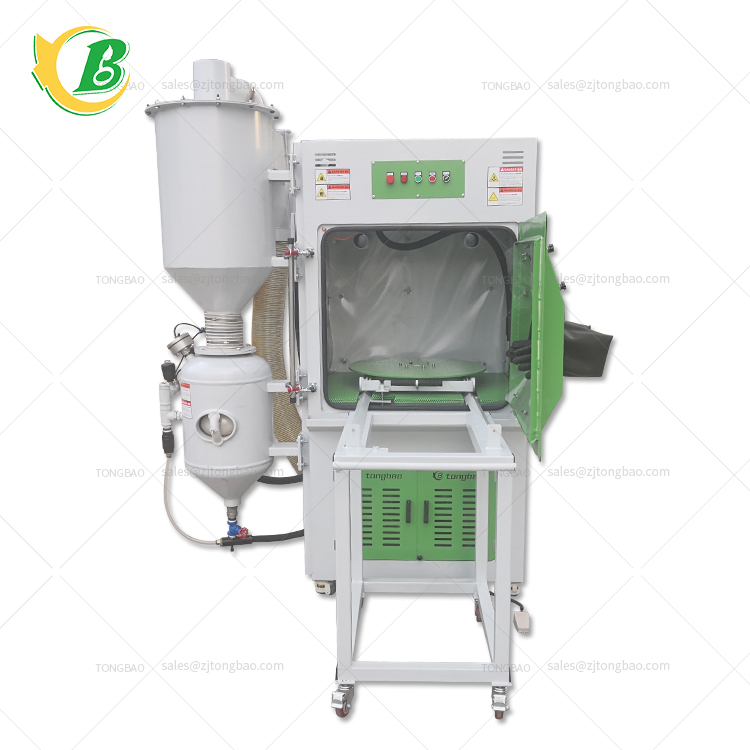

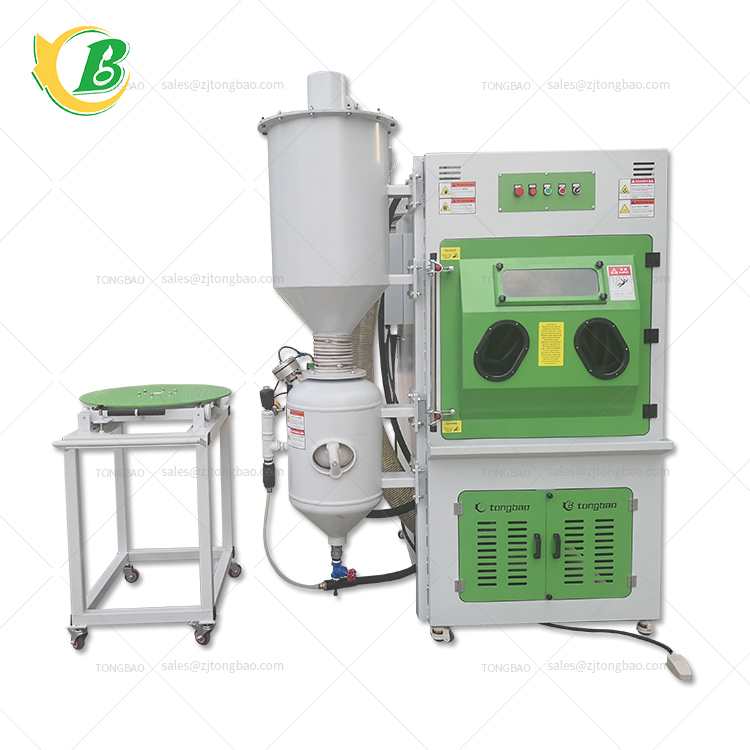

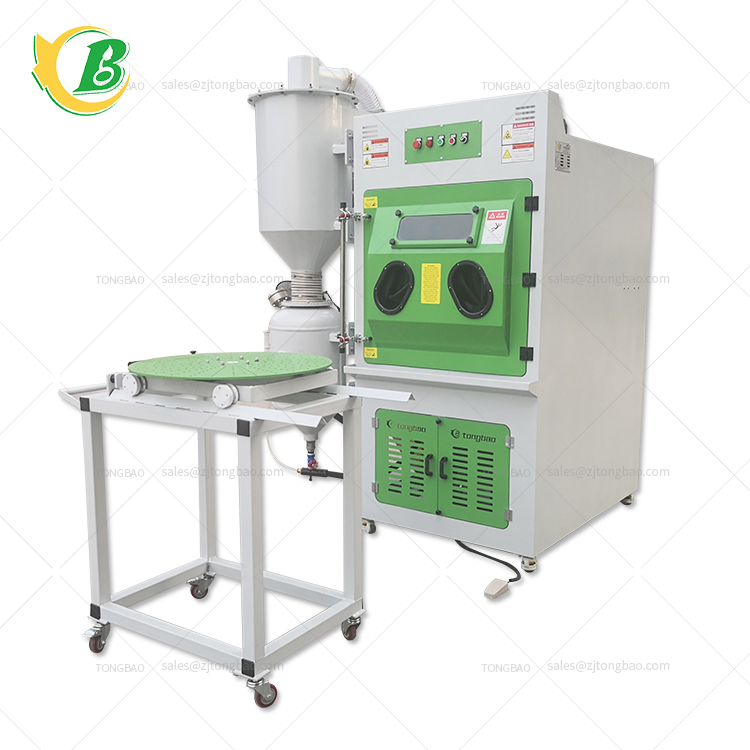

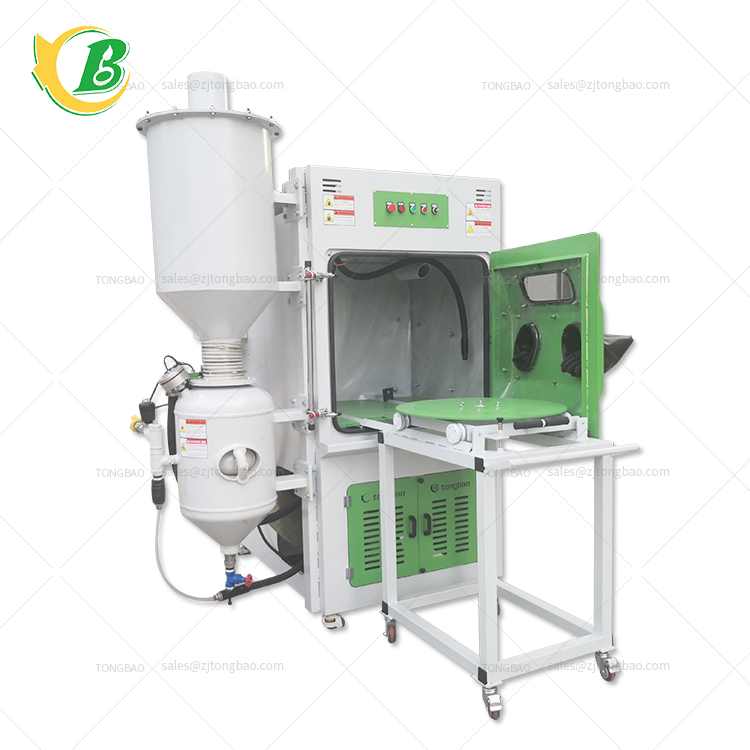

Manual high pressure box sandblasting machine TB-PN1000
Manual high pressure box sandblasting machine TB-PN1000 Application scope: This machine is mainly suitable for sandblasting of various molds such as precision dewaxing, casting and forging, mold shell cleaning, deep holes and shoe molds, pretreatment of Teflon, rubber embossing, roller coating, and stone, Engraving and processing of hardware, jade, glass, cemented carbide and other high-hardness workpieces. Features: 1. Adopt the pressure type to directly accelerate the sprayed sand material, and the sand material has a deeper impact point. 2. The processing speed is about 3 times faster than that of the cyclone sandblasting machine. 3. The sand material can be automatically recycled, thereby increasing the utilization rate of the sand material.
Manual high pressure box type sandblasting machine parameters Product model: TB-PN1000 Product size (mm): 1775×1490×2530 Sandblasting bin size (mm): 1000×977×892 Door size (mm): 890×850 Product quality: about 800kg Power supply: 220v (380), 50hz Machine lighting: 220v, 2×12w led light Separator motor: 380v, 50hz, 2.2KW Air volume of separator: 29m3/min Compressed air source pressure: 5-8bar (kg/cm2) Compressed air source volume: 0.8—1.5 m3/min Separator size (mm): φ500×1150 Dust removal power: 3hp Nozzle diameter (mm): φ8 Sandblasting tank capacity: 60L Machine can be customized items: manual/electric cart, manual/electric turntable
