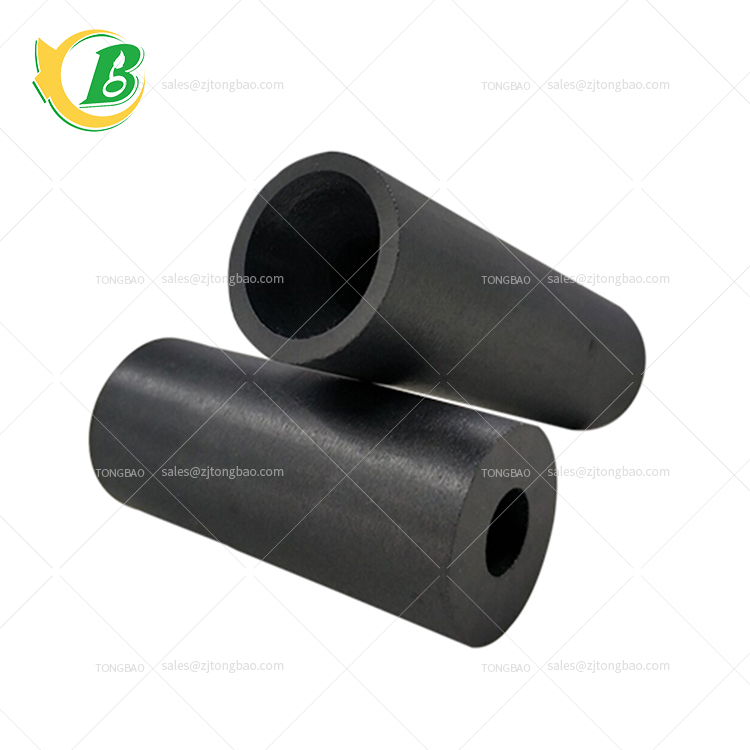

High density boron carbide nozzle

Features of Boron Carbide Sand Blasting Nozzle (Boron Carbide Spray Gun Nozzle):

1. High temperature sintered boron carbide products, with high hardness, high toughness, high wear resistance and long life;

2. The appearance is neat and smooth.

3. High rounding rate of outer circle and inner hole;

4. It is made of pure boron carbide powder by sintering, and it is pure boron carbide material without other materials;

5. Does not react with acid and alkali;

6. High and low temperature resistance, high pressure resistance;

7. Density≥2.46g, cm3;

8. Microhardness ≥3500kgf/mm2;

9. Bending strength ≥400Mpa;

10. The melting point is 2450°C.

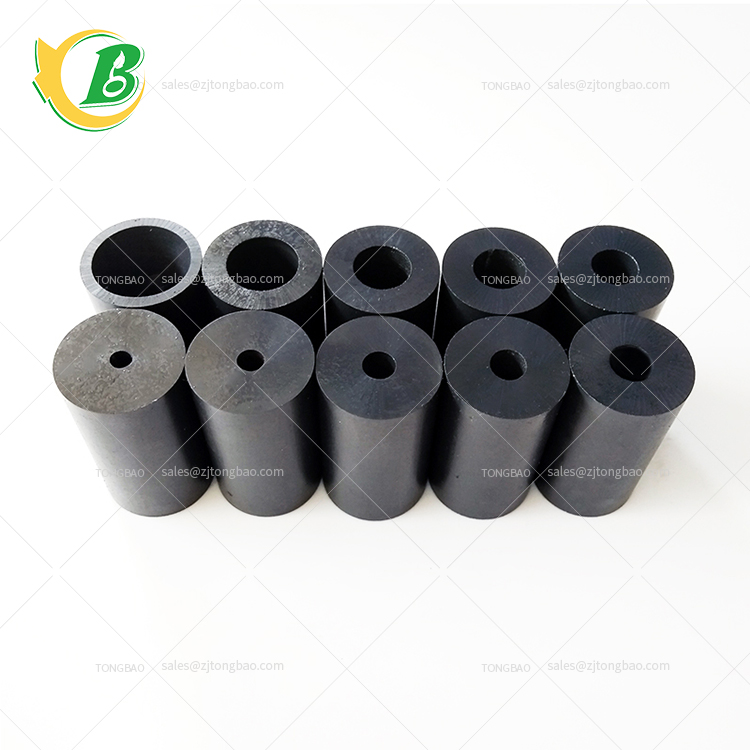

No. 序号	Article No. 商品编号	Type 型号	Size 尺寸	Description 说明
1	1916062035	BCN062035	6ID20OD35L(mm)	Suitable for sandblasting gun: TB-BN1/2, TBE-1, TBE-2, TBV-1, TB-BC 适合喷砂枪为：TB-BN1/2、TBE-1、TBE-2、TBV-1、TB-BC
2	1916082035	BCN082035	8ID20OD35L(mm)
3	1916102035	BCN102035	10ID20OD35L(mm)
4	1916122035	BCN122035	12ID20OD35L(mm)
5	1916062045	BCN062045	6ID20OD45L(mm)
6	1916082045	BCN082045	8ID20OD45L(mm)
7	1916102045	BCN102045	10ID20OD45L(mm)
8	1916122045	BCN122045	12ID20OD45L(mm)
9	1916062060	BCN062060	6ID20OD60L(mm)
10	1916082060	BCN082060	8ID20OD60L(mm)
11	1916102060	BCN102060	10ID20OD60L(mm)
12	1916122060	BCN122060	12ID20OD60L(mm)
13	1916062080	BCN062080	6ID20OD80L(mm)
14	1916082080	BCN082080	8ID20OD80L(mm)
15	1916102080	BCN102080	10ID20OD80L(mm)
16	1916122080	BCN122080	12ID20OD80L(mm)
17	1916952253	BCN9.52253	9.5ID22OD53L(mm)	Suitable for sandblasting gun: TBGQ, TBGQ2, TB-SS2, TB-PQ1, TB-PQ6, etc. 适合喷砂枪为：TBGQ、TBGQ2、TB-SS2、TB-PQ1、TB-PQ6等
18	19161252253	BCN12.52253	12.5ID22OD53L(mm)

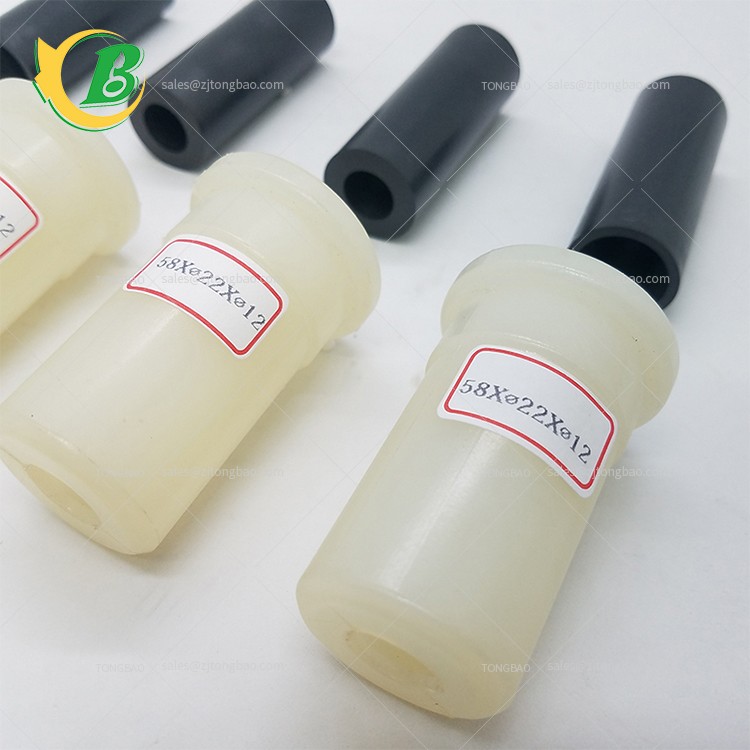

19	1916122258	BCN122258	12ID22OD58L(mm)	Suitable for sandblasting gun: TBGQ, TBGQ2,etc. 适合喷砂枪为：TBGQ、TBGQ2等
备注：接受定制尺寸的碳化硼喷嘴。
