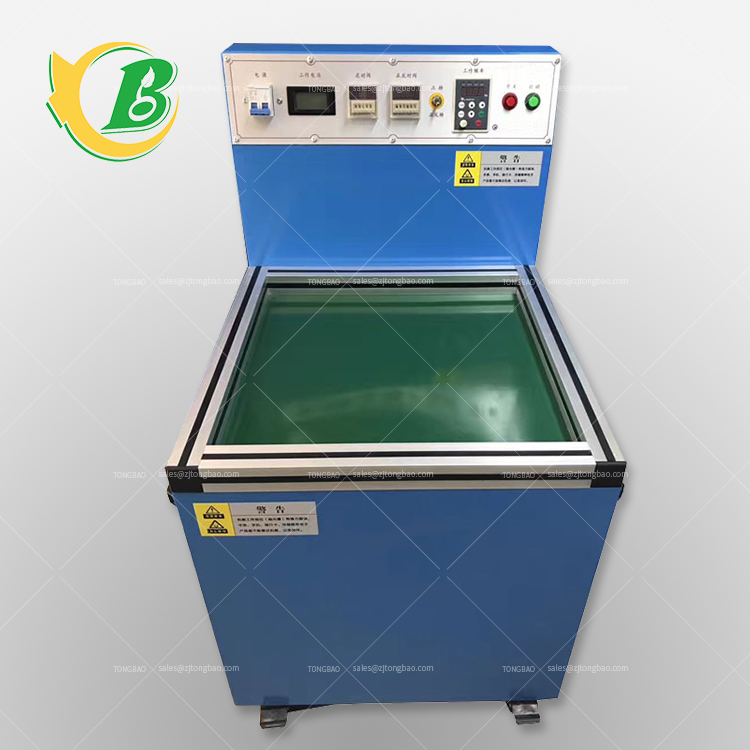

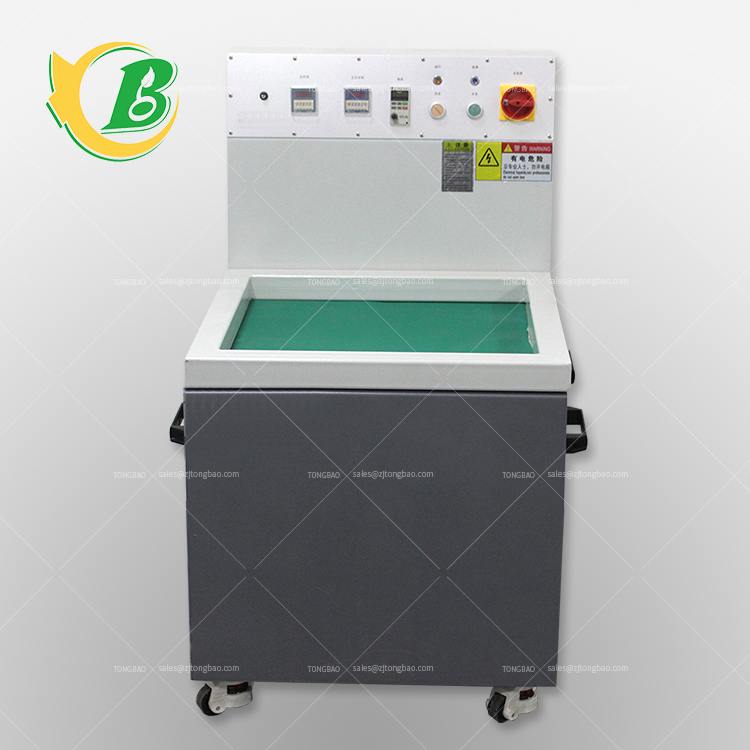

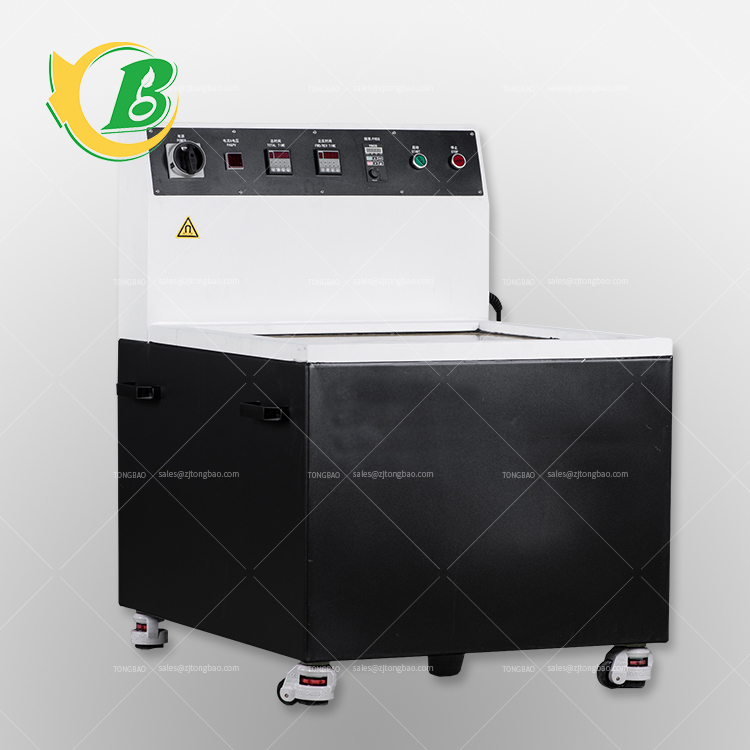

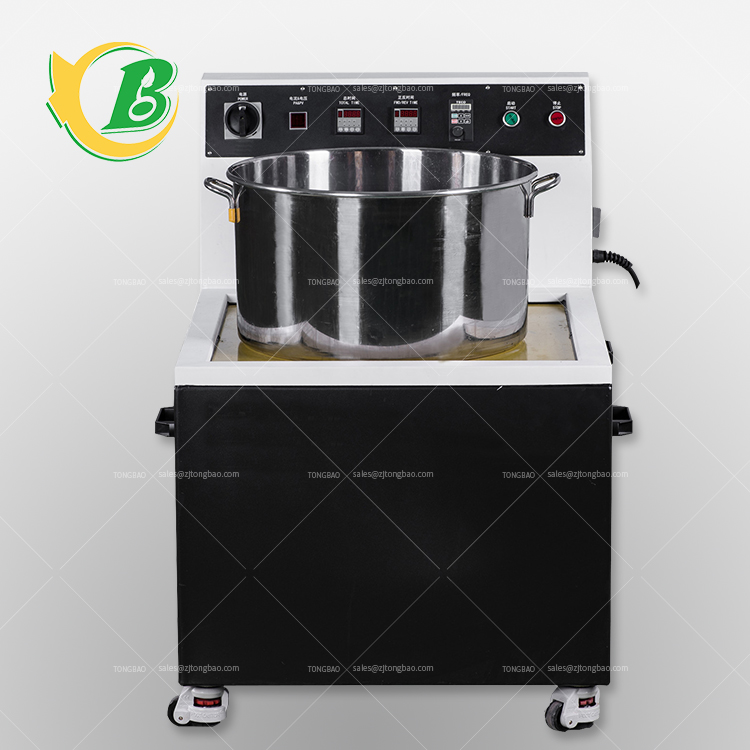

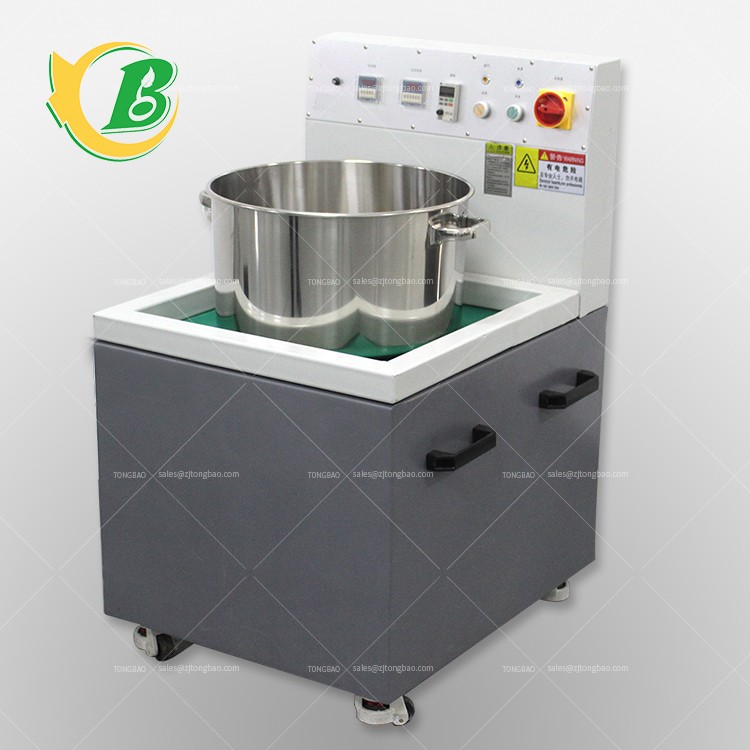

Magnetic polishing machine, magnetic deburring grinding machine

No price
  • Product Description
  • Product Parameter

The magnetic polishing machine is commonly known as a magnetic deburring machine, also called a magnetic grinding machine, a magnetic cleaning machine, and its unique net-like alternating magnetic field produces three-dimensional electromagnetic induction in the metal workpiece, which causes the workpiece to rotate and roll.

Technical parameters of magnetic polishing machine

Model

Overall size

Bucket size

(H*D)

Rated power supply

(All copper motor power)

Speed / minSpeed / min

Polishing

needle

dosage (g)

Maximum

polishing

weight  (kg)

TB-MPA1

290*330

130*220

220V/50HZ

550W

0-1800

100-800

1

TB-MPA2

320*360

160*260

220V

750W

1400

0-200

2

TB-MPA3.1

400*400*760

220*370

220V

1.1KW

0-1800 0-60HZ

500*1500

3

TB-MPA3.2

400*500*410

220*370

220V

1.1KW

0-1800 0-60HZ

0-800

3

TB-MPA4.1

400*500*760

220*370

220V

1.5KW

0-1800 0-60HZ

500*1500

5

TB-MPA4.2

400*400*410

220*370

220V

1.5KW

0-1800 0-60HZ

500*1500

5

TB-MPA5

600*670*1050

240*420

220V

2.2KW

0-1800 0-60HZ

500*1500

10

TB-MPA6

690*850*1110

270*520

380V

4KW

0-1800 0-60HZ

500*1500

15

TB-MPA7

960*750*1150

270*600

380V

4KW

0-1800 0-60HZ

500*4000

20
