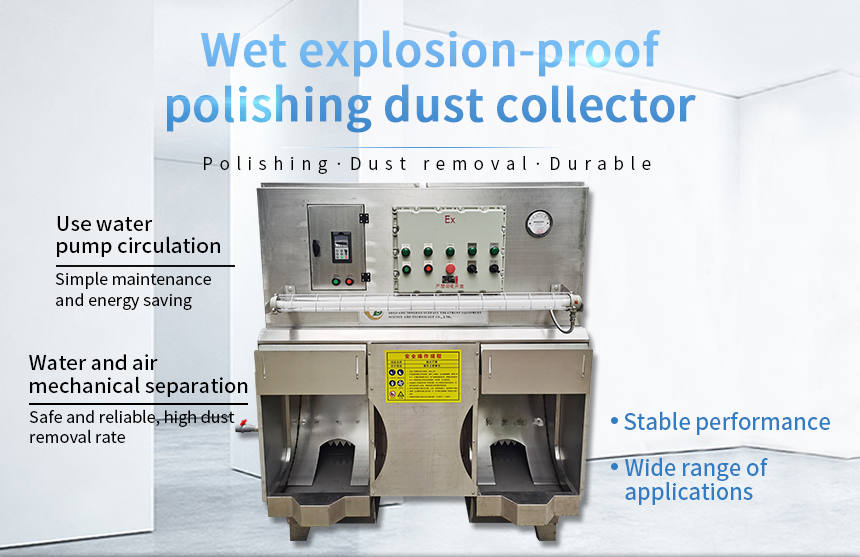

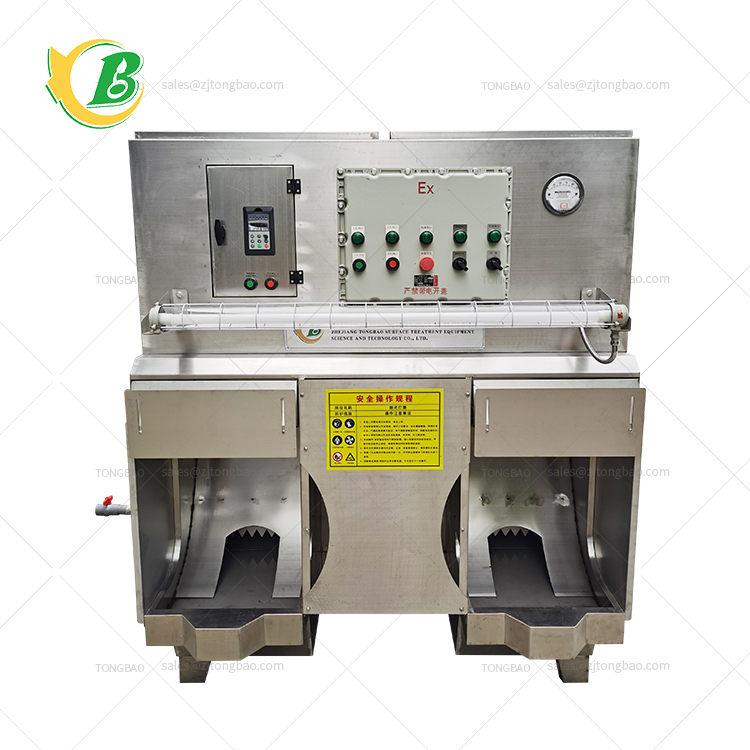

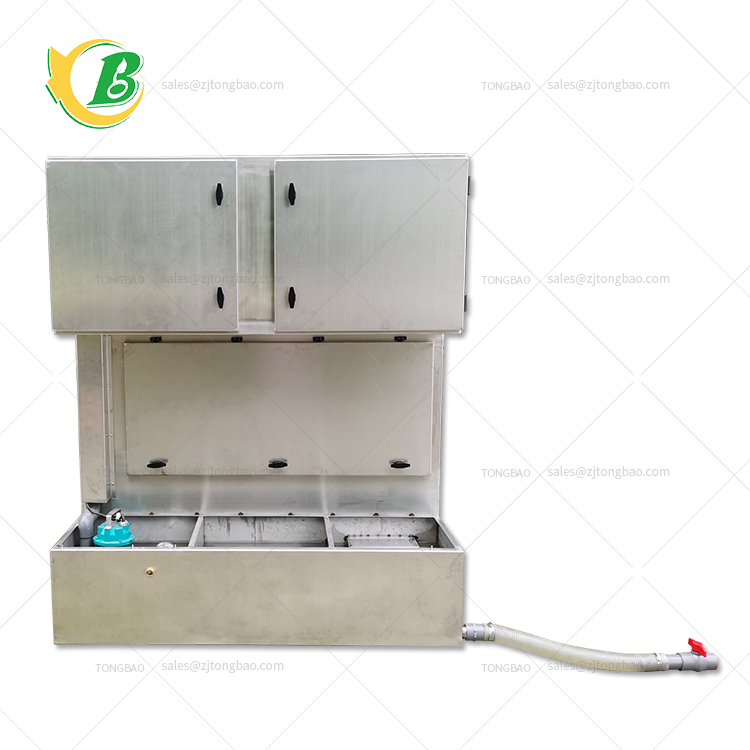

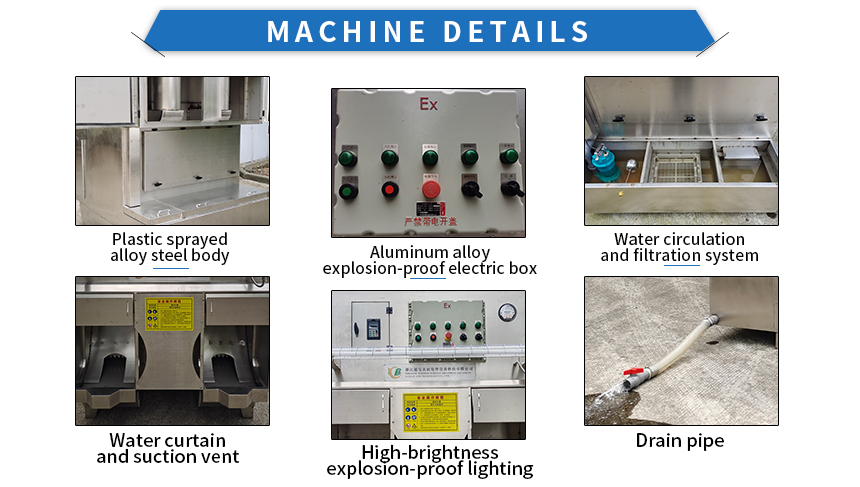

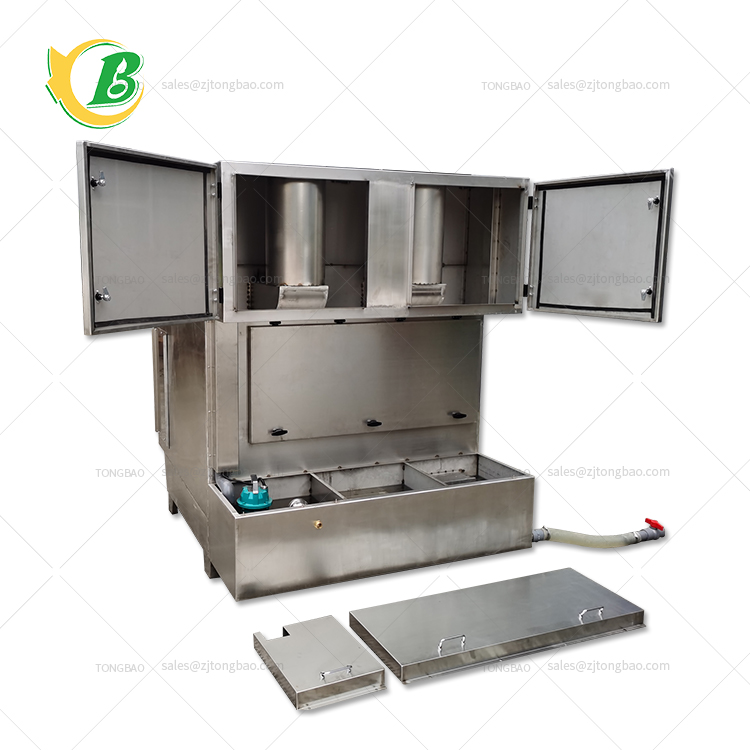

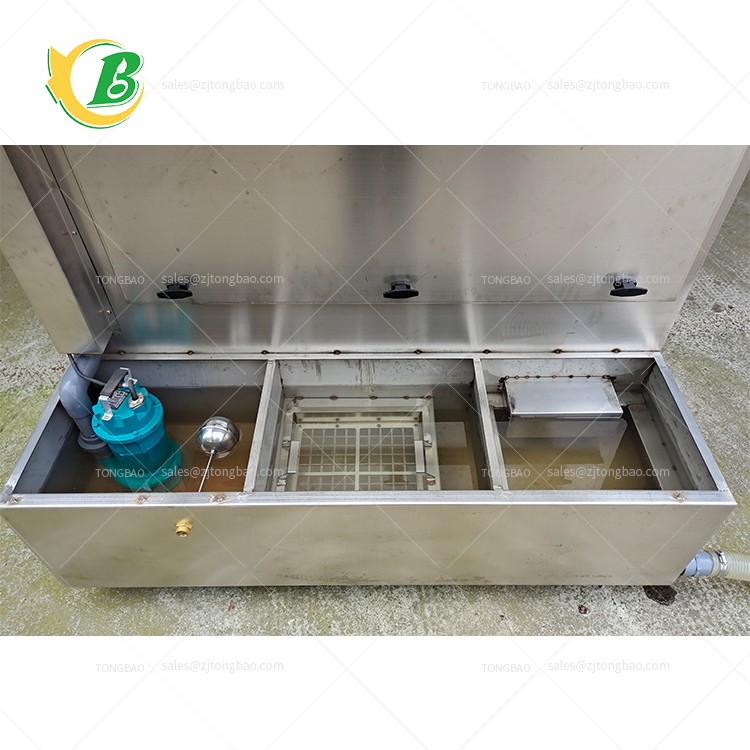

Wet environmental protection explosion-proof polishing dust collector

No price
  • Product Description
  • Product Parameter

The wet explosion-proof polishing dust collector is a wet explosion-proof dust collector designed for belt machines and polishing machines. It is suitable for grinding and polishing machines for flammable and explosive dust such as aluminum alloys and magnesium alloys. It is widely used in hardware polishing, building materials, chemicals, Environmental protection, explosion-proof and dust removal treatment in petrochemical, machinery, furniture and woodworking enterprises.


Wet type environmental protection dust removal integrated machine parameter model

Model

TB-WPD350

TB-WPD400

TB-WPD900

Equipment weight

470kg

537kg

550kg

Maximum wind speed

2.17/s

2.17/s

2.17/s

Rated power

7KW

7KW

8KW

Equipment noise

80db

85db

95db

Rated current

14A

14A

17A

Maximum loading

350mm

400mm

900mm

Operating Voltage

Ac380V    50Hz

Ac380V    50Hz

Ac380V    50Hz

Dust collection efficiency

>99.9%

>99.9%

>99.9%

Processing flow

3517m3/h

3517m3/h

3517m3/h

Filtration accuracy

10um

10um

10um

Dust collection full pressure

800PA

800PA

800PA

Manufacturing Standards

AQ4273-2016

AQ4273-2016

AQ4273-2016

Equipment size

(L*W*H)

1700*1500*1900mm

1860*1500*1900

2000*1500*2100
